Porsche 924S Lenkung Rad Lenkung Column Teile

Lenkung Rad Lenkung Column

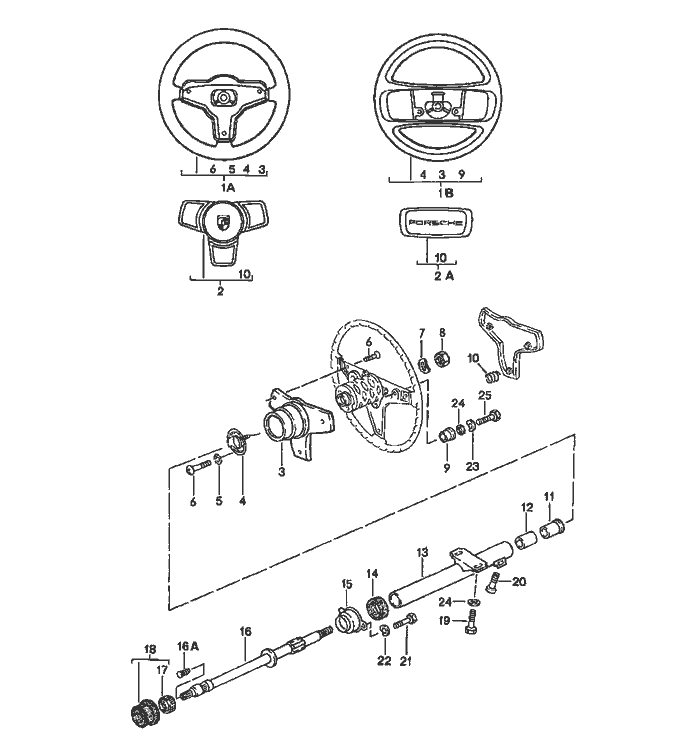

Pos__Part_Number__DescriptionRemarkQty.Model
  steering wheel steering column
1A 944 347 084 01sports steering wheel leatherette $ 380 MM  1
 1DBblack
 4RBbrown
1A 944 347 084 04sports steering wheel leather $ 380 MM  1 M 416
 1AJblack
 4RBbrown
(1A) 944 347 084 03sports steering wheel leather $ 380 MM with elevated hub  1 M 018
 1DBblack
 4RBbrown
1B 944 347 084 02sports steering wheel leather $ 363 MM  1 M 431
 1AJblack
 4RBbrown
2 944 347 859 04padded cap  1
 1DBblack
 4RBbrown
2A 944 347 859 05padded cap  1
 1AJblack
 4RBbrown
3 944 347 057 00lining  1
 1DBblack
 4RBbrown

Pos__Part_Number__DescriptionRemarkQty.Model
(3) 944 347 857 00lining   1
  for
  four-spoke steering wheel
 1DBblack
 4RBbrown
4 113 415 660 Aslip ring   1
5 N 012 131 2shake-proof washer   3
  J 3,7
6 113 415 869oval-head Schraube   6
  M 3,5 X 10
7 N 012 238 5spring washer   1
  B 16
8 900 078 006 01hexagon nut   1
  M 16 X 1,5
9 321 419 779 Ainsulating bush   4
10 171 419 697spring   4
11 171 419 341support ring   1
12 171 419 549clamping sleeve   1
13 477 419 563 Bsteering column tube   1
14 411 417 613rubber mounting   1
15 411 417 605support ring   1
16 477 419 505 Jsteering column Left Hand Drive 1
(16) 944 347 019 00steering column Left Hand Drive 1 M 657
16A 944 347 483 00stopper   1
17 113 415 511needle-roller bearing   1
18 477 419 059needle sleeve   1
19 411 417 549shear bolt   2
20 N 014 707 4pan-head Schraube   1
  M 8 X 15
21 999 072 005 09hexagon-head bolt   2
  M 6 X 12

Pos__Part_Number__DescriptionRemarkQty.Model
22 211 805 243spring washer  2
23 N 042 122 2shake-proof washer J 4,3  4
24 900 025 002 02washer A 4,3  4
25 N 010 261 3hexagon-head bolt M 4 X 15  4
