Porsche 924S Hinter Achse Carrier Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model

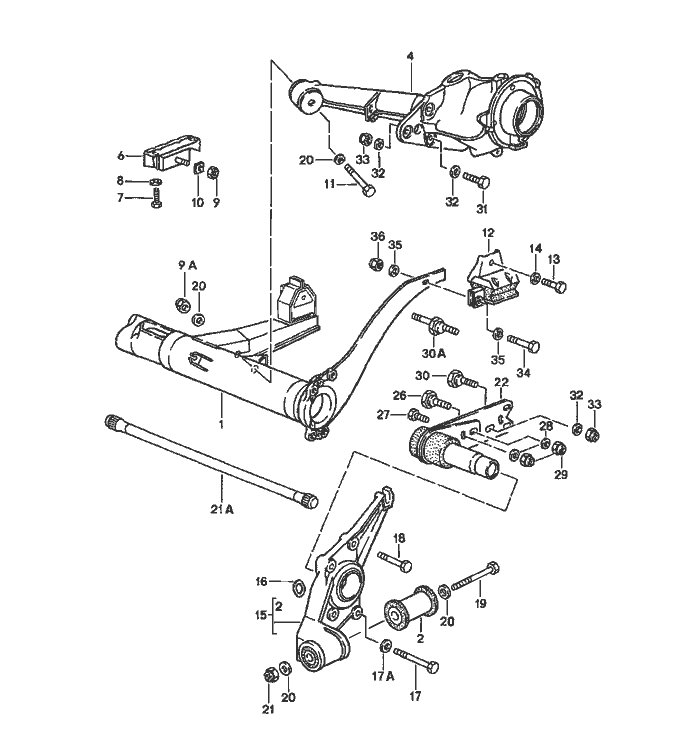

		rear axle carrier
		rear-axle trailing arm
1	944 331 045 02	rear-axle cross-tube			1
2	477 501 069 A	rubber bush			2
4	951 331 021 01	rear-axle trailing arm	Left		1
(4)	951 331 022 01	rear-axle trailing arm	Right		1
6	477 501 089	mounting			2
7	N 040 272 2	hexagon-head bolt			4
		M 10 X 35
8	900 025 008 09	washer			4
		A 10,5
9	N 900 876 01	lock nut			2
		VM 10
9A	N 021 131 1	lock nut			2
		M 12 X 1,5
10	477 501 697	washer			2
11	N 010 190 4	hexagon-head bolt			2
		M 12 X 90
12	944 331 075 00	supporting mount	Left		1
(12)	944 331 076 00	supporting mount	Right		1
13	900 075 040 02	hexagon-head bolt			2
		M 10 X 20
14	N 012 230 6	spring washer			8
		B 10
15	944 331 059 00	bearing flange	Left		1
(15)	944 331 060 00	bearing flange	Right		1
16	477 501 667	washer			2
17	N 010 465 5	hexagon-head bolt			2
		M 10 X 65
17A	N 012 230 6	spring washer			8
		B 10

Pos	__Part_Number__	Description	Remark	Qty.	Model
18	900 074 063 02	hexagon-head bolt			6
		M 10 X 55
19	900 082 059 02	hexagon-head bolt			2
		M 12 X 1,5 X 115
20	803 199 347	washer			8
21	N 022 141 4	lock nut			2
		VM 12 X 1,5
21A	944 333 115 00	torsion bar	Left		1
		23,5 MM $
21A	944 333 116 00	torsion bar	Right		1
		23,5 MM $
21A	944 333 103 00	torsion bar	Left		1	M 030
		24,5 MM $
21A	944 333 104 00	torsion bar	Right		1	M 030
		24,5 MM $
22	951 333 021 00	rear axle strut			2
26	911 333 303 00	eccentric Schraube			2
27	911 333 305 00	hexagon-head bolt			2
28	999 025 135 02	washer			4
29	900 910 092 02	lock nut			4
		VM 16 X 1,5
30	477 511 519	camber eccentric			2
30A	477 511 515	camber eccentric			2
		only together with
		stabiliser
		$ 14 MM
31	N 010 138 1	hexagon-head bolt			4
		M 12 X 1,5 X 38
32	N 011 531 7	washer			8
		A 13
33	N 022 141 4	lock nut			4
		VM 12 X 1,5
34	900 075 029 09	hexagon-head bolt			2
		M 8 X 25

Pos	__Part_Number__	Description	Remark	Qty.	Model
35	900 025 007 02	washer			4
		A 8,4
36	900 910 022 09	lock nut			2
		VM 8
