Porsche 924S Side Member Teile

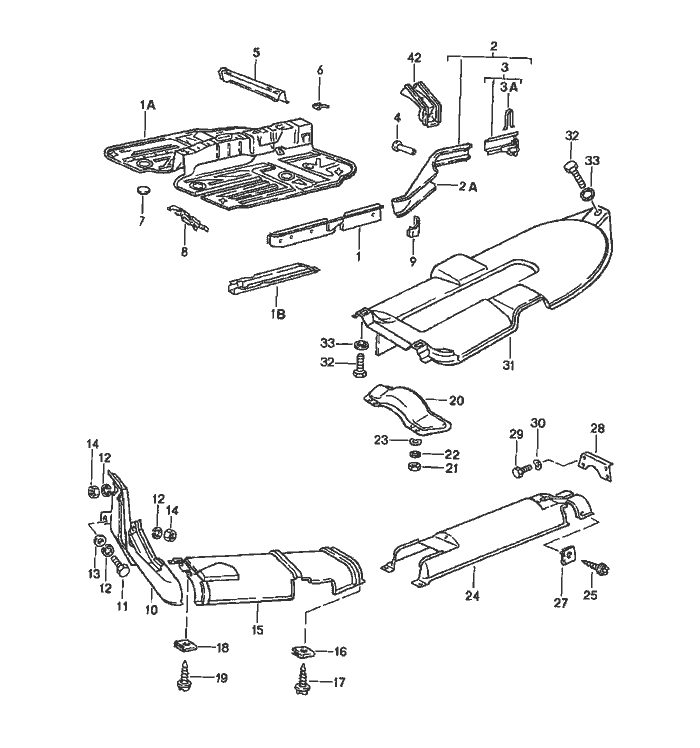

Side Member


Pos__Part_Number__DescriptionRemarkQty.Model
  side member
  heat shield
1 477 803 103 Bside member Left 1
(1) 478 803 104 Bside member Right 1
-803 803 583drain bush   X
-803 803 583 Alid   X
1A 944 501 501 00floor section   1
1B 477 803 283side member   2
2 951 501 105 00side member Left 1
(2) 951 501 106 00side member Right 1
2A 951 501 115 00side member Left 1
(2A) 951 501 116 00side member Right 1
3 477 803 125 Aend piece Left 1
(3) 944 502 066 02end piece Right 1
3A 477 803 129retaining bow   2
4 477 803 145bush   2
5 477 803 231cross member Vorder Left 1
(5) 477 803 232cross member Vorder Right 1
6 477 803 241bracket Hinter 4
  front seat
7 411 803 595lid   2
  136 MM $
8 477 803 729foot support Left Hand Drive 1
9 477 803 871 Ajacking point Left 1
(9) 477 803 872 Ajacking point Right 1
10 477 809 214 Acover plate   1
11 999 072 005 09hexagon-head bolt   1
  M 6 X 12

Pos__Part_Number__DescriptionRemarkQty.Model
12 N 012 006 4lock ring  3
  B 6
13 N 011 524 7washer  1
  A 6,4
14 900 076 010 02hexagon nut  2
  M 6
15 477 803 387 Bheat shield  1
16 999 591 485 02speed nut  2
  BG 4,8
17 N 090 239 1combination Schraube  2
  B 4,8 X 13
18 999 591 485 02speed nut  2
  BG 4,8
19 N 090 239 1combination Schraube  2
  B 4,8 X 13
20 477 803 253transverse strut  1
21 N 011 008 8hexagon nut  4
  M 8
22 900 025 007 02washer  4
  A 8,4
23 900 027 015 02lock ring  4
  B 8
24 951 504 869 00heat shield  1
25 N 090 239 1combination Schraube  2
  B 4,8 X 13
27 999 591 485 02speed nut  2
  BG 4,8
28 477 803 291transverse strut  2
29 N 010 237 6hexagon-head bolt  8
  M 8 X 12
30 N 012 229 3spring washer  8
  A 8
31 944 503 139 00heat shield -87 1
31 944 503 139 00heat shield 88 1 M 249

Pos__Part_Number__DescriptionRemarkQty.Model
(31) 944 504 093 00heat shield 88 1
32 999 072 005 09hexagon-head bolt  3
  M 6 X 12
33 N 011 666 7washer  3
  6,4
42 944 201 045 00cover  1
