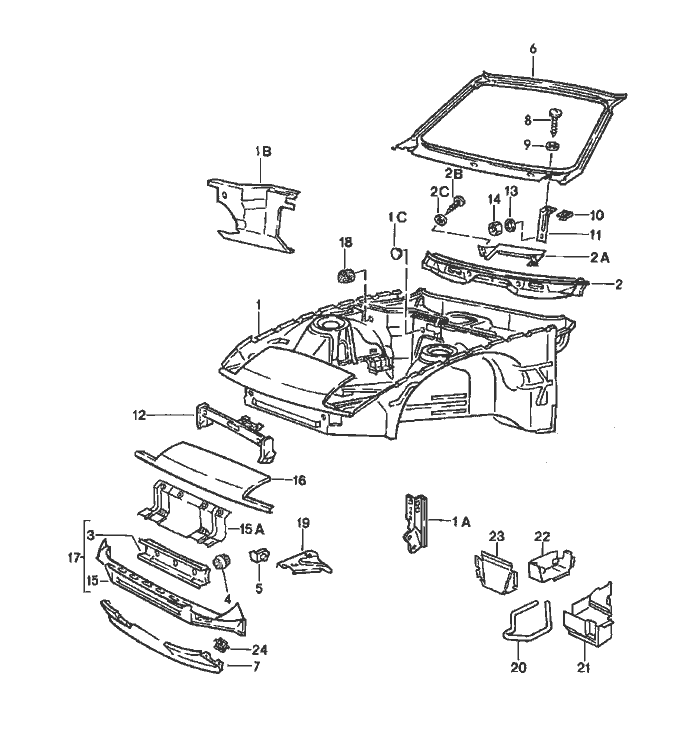

Porsche 924S Body Vorder Section Teile

Pos	__Part_Number__	Description	Remark	Model
		body front section
1	944 501 011 14	body front section	Left Hand Drive	1
1A	477 805 057 A	reinforcement	Left	1
(1A)	477 805 058 A	reinforcement	Right	1
(1B)	944 502 021 01	firewall	Left	1
1B	944 502 022 01	firewall	Right	1
-	111 971 911 A	rubber sleeve		1
2	944 502 079 00	cross member	Left Hand Drive	1
2A	944 572 377 00	bracket		1
2B	N 013 883 3	tapping Schraube		4
2C	900 025 003 02	washer		4
		A 5,3 X 10
3	944 502 077 00	cross member		1
4	803 803 583	drain bush		3
5	951 503 069 00	bracket	Left	1
(5)	951 503 070 00	bracket	Right	1
6	477 805 571 C	windscreen frame		1
(7)	944 503 035 01	spoiler		1
8	900 143 046 07	tapping Schraube		4
		B 4,8 X 16
9	900 025 003 02	washer		4
		A 5,3
10	N 015 458 1	speed nut		4
		4,8 X 14,8
11	477 805 592	cowl panel support		2
12	944 501 025 00	lock carrier		1
13	N 011 612 3	washer		2
14	900 910 012 02	lock nut		2
		M 6

Pos	__Part_Number__	Description	Remark	Model
15	944 503 043 01	end plate lower		1
15A	944 575 021 00	cooling air duct		1
16	944 503 033 02	end plate upper		1
17	944 502 051 03	terminal piece		1
18	477 805 667	water drain valve		2
19	477 805 699	corner plate	Left	1
(19)	477 805 699 A	corner plate	Left	1	M 573
-	477 805 693	support horn		1
20	477 809 525 A	towing lug		1
21	477 809 244 A	support		1
22	477 809 246	support		1
23	477 809 248	support		1
24	999 507 336 02	captive nut M 6		4
