Porsche 924S Hinter Lid Hinter Spoiler Teile

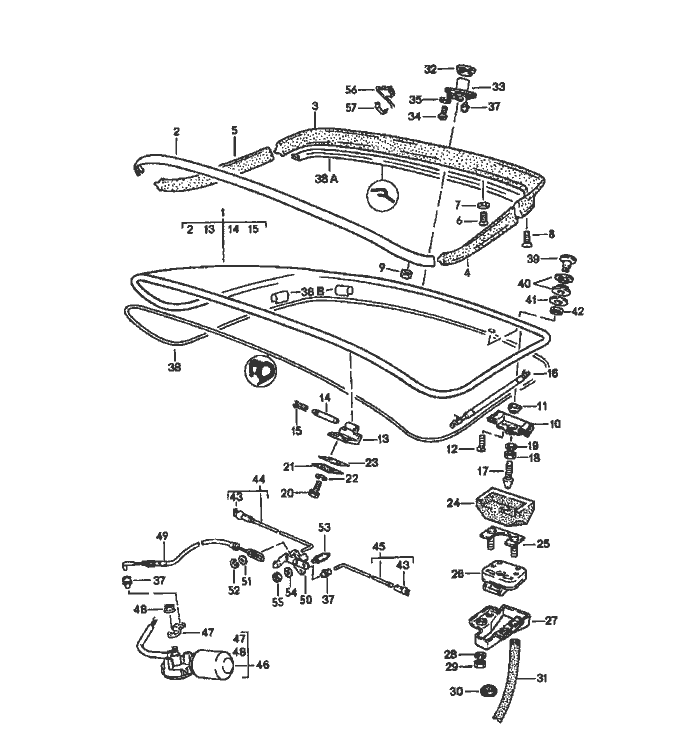

Hinter Lid Hinter Spoiler


Pos__Part_Number__DescriptionRemarkQty.Model
  rear lid rear spoiler
1 944 512 929 05rear lid with moulding without rear spoiler -MOD.86 and M425   1
  see group 9/04/05 POS.9 mounting plate MOD.87-order also:
  rear lid together with wiper motor see group 9/04/05
2 477 853 313 Atrim frame   1
3 477 827 555rear spoiler centre   1
4 477 827 557rear spoiler Left 1
5 477 827 558rear spoiler Right 1
6 N 033 183 1countersunk-head Schraube M 5 X 20   7
7 477 827 453 Awasher   7
8 N 033 185 1countersunk-head Schraube M 4 X 16   2
9 N 021 255 1slotted nut M 4   12
10 944 512 033 01housing Left 1
(10) 944 512 034 01housing Right 1
11 477 827 035rubber mounting   2
12 999 219 011 07countersunk-head Schraube   4
13 477 827 305 Bhinge half   2

Pos__Part_Number__DescriptionRemarkQty.Model
14 944 512 311 00hinge pin   2
15 477 827 441bush   2
(16) 477 827 348 Fgas-pressure spring Right 1
16 477 827 349 Dgas-pressure spring Left 1
17 944 538 547 00lock pin   2
18 N 011 151 3hexagon nut   2
  M 8
19 900 025 007 02washer   2
  A 8,4
20 N 014 770 3pan-head Schraube   4
  M 8 X 12
21 928 512 417 03plate   2
23 944 512 413 00gasket   2
  lid hinge
24 944 512 365 01gasket Left 1
  lid lock
  lower part
(24) 944 512 366 01gasket Right 1
  lid lock
  lower part
25 951 512 447 00reinforcement plate   2
26 944 538 955 01rear lid lock Left-87 1
26 944 538 055 01rear lid lock Left88 1
(26) 944 538 956 01rear lid lock Right-87 1
(26) 944 538 056 01rear lid lock Right88 1
27 477 827 541water drip pan   2
28 N 012 006 4lock ring   4
  B 6
29 900 076 010 02hexagon nut   4
  M 6
30 111 971 911 Arubber sleeve   2

Pos__Part_Number__DescriptionRemarkQty.Model
31 477 827 547hose   2
  400 MM
32 477 827 529 Asealing ring   1
33 477 898 082lock cylinder  -87 1
  w/o stipulated lock number
33 944 538 911 01lock cylinder  88 1
  w/o stipulated lock number
  with 2 secondary keys
(33) 477 827 573 Block cylinder  -87 1
  state lock number
(33) 944 538 073 00lock cylinder  881
  with stipulated lock number
  state lock number
34 N 014 139 5oval-head Schraube   2
  M 6 X 12
35 N 012 007 2lock ring   2
  A 6
37 993 531 563 00linkage clip  -87 2
(37) 999 166 054 02sl-lock  88 1
38 944 512 043 00seal for rear lid   1
38A 944 512 463 00additional gasket  86 1
38A 944 512 463 00additional gasket  871
39 477 845 333Schraube plug   1
40 477 955 439grommet   2
41 477 845 331washer   1
42 N 011 118 14hexagon nut   1
  M 8
43 N 015 704 1ball socket  -87 1
(43) 999 168 025 00ball socket  88 1
44 944 512 092 01pull rod Right 1
45 944 512 091 00pull rod Left 1

Pos__Part_Number__DescriptionRemarkQty.Model
46 944 624 024 01electric motor  1
  see technical information
  GR.5,NR.1/93
  F >>92HN4 50198
(46) 944 624 024 01electric motor -87 1
  see technical information
  GR.5,NR.1/93
  F 92HN4 50199>>
(46) 944 624 024 02electric motor 88 1
  see technical information
  GR.5,NR.1/93
(47) 944 624 824 01lever  1
  F >>92HN4 50198
47 944 624 824 00lever -87 1
  F 92HN4 50199>>
(47) 944 624 814 00lever 88 1
48 999 084 045 02lock nut  1
49 944 512 097 02bowden cable -87 1
50 944 512 095 00lever  1
(49) 944 512 097 03bowden cable 88 1
52 N 012 054 2clamping washer  1
53 944 512 201 00stud  2
54 N 011 524 7washer  2
  B 6
55 900 076 010 02hexagon nut  2
  M 6
56 944 624 030 00microswitch 88 1
57 999 591 910 00clamp 88 1
