Porsche 924S Power Windows Teile

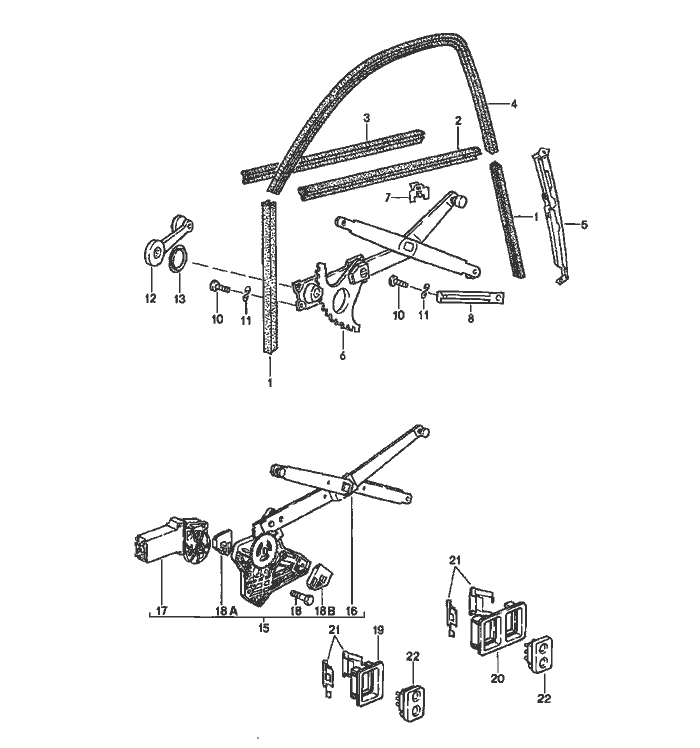

Pos	__Part_Number__	Description	Remark	Qty.
		power windows
		window guide
1	477 837 385	window guide		4
2	477 837 469 A	sealing strip	Left	1
		outer
(2)	477 837 470 A	sealing strip	Right	1
		outer
3	477 837 471 A	seal		2
		inner
4	944 537 079 00	window guide	Left	1
(4)	944 537 080 00	window guide	Right	1
5	944 531 103 00	window guide rail	Left	1
(5)	944 531 104 00	window guide rail	Right	1
6	477 837 441 A	power windows	Left	1
(6)	477 837 442 A	power windows	Right	1
7	171 837 485	clamp		10
8	477 837 589	guide rail		2
10	999 217 029 02	hexagon-head bolt		12
		M 6 X 10
		self-locking
11	N 011 652 1	washer		12
		7 X 12
12	944 555 057 00	window crank		2
	3DL	black
	1FL	light grey
	5TL	brown
(12)	944 555 057 01	window crank		2
	3DL	black	CA.8.87-
	5TL	brown
	1FL	light grey	CA.7.87-

Pos	__Part_Number__	Description	Remark	Qty.
	4LL	burgundy	CA.5.87-
13	111 837 595	desk pad		2
	01C	black
	90V	brown
16	477 837 391 C	cross-arm power window	Left	1
(16)	477 837 392 C	cross-arm power window	Right	1
17	477 959 123 A	engine and transmission	Left	1
(17)	477 959 124 A	engine and transmission	Right	1
18	N 014 228 4	countersunk-head Schraube AM 6 X 12		6
18A	477 837 397	stop upper	Left	1
18B	477 837 398	stop upper	Right	1
18A	477 837 397	stop lower	Right	1
18B	477 837 398	stop lower	Left	1
19	477 867 185 A	mounting piece		1
	1DB	black
	4RB	brown
20	477 867 187 A	mounting piece		1
	1DB	black
	4RB	brown
21	477 867 189	spring clamp		4
22	477 959 622	tip switch		3
	01C	black
	89S	brown

Pos	__Part_Number__	Description	Remark	Model
		electrical components for power window
-	944 612 031 00	wiring harness dashboard	Left Hand Drive	1
-	477 971 161	wiring harness driver's door		1
-	477 971 162	wiring harness passenger's door		1
-	944 615 112 01	relay		1
-	N 017 121 5	safety fuse 25 A		1
