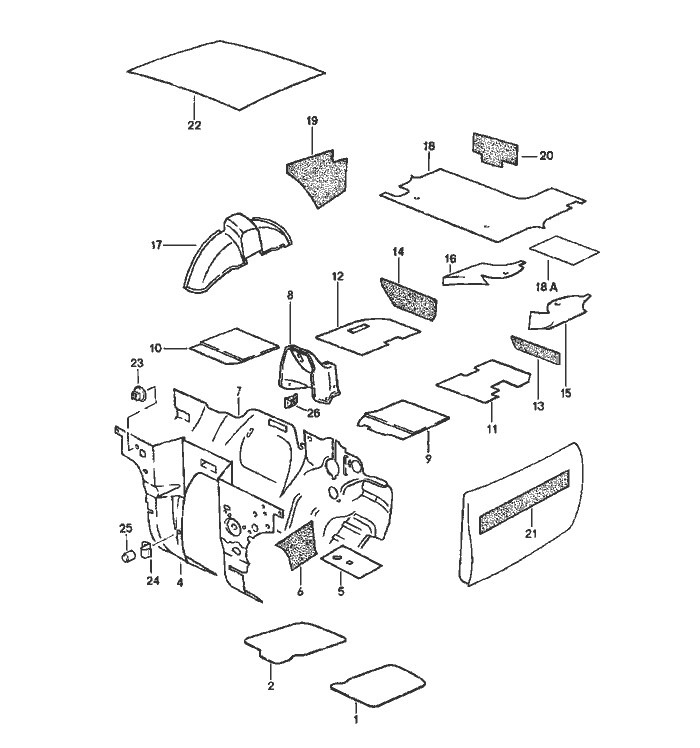

Porsche 924S Sound Absorber Teile

Sound Absorber


Pos__Part_Number__DescriptionRemarkQty.Model
  sound absorber
1 477 863 771sound absorber Left1
2 944 556 772 01sound absorber Right1
  bonnet
4 944 556 089 00insulation Left Hand Drive1
5 477 863 849insulation Left1
6 944 556 083 00sound absorber Left Hand Drive \/ Left Side1
(6) 944 556 084 00sound absorber Left Hand Drive \/ Right Side1
7 477 863 855 Einsulation Left Hand Drive1
7 477 863 855 Finsulation Left Hand Drive1 M 573
  firewall
8 477 863 667 Asound absorber Vorder1
9 944 556 775 01sound absorber Left Hand Drive \/ Left Side1
10 944 556 776 01sound absorber Left Hand Drive \/ Right Side1
11 477 863 773sound absorber Left1
12 477 863 774sound absorber Right1
13 944 556 085 00sound absorber Left1
(13) 944 556 086 00sound absorber Right1
14 477 863 845 Asound absorber Left1
(14) 477 863 846 Asound absorber Right1
  heel plate
15 944 556 777 01sound absorber Left1
16 944 556 778 01sound absorber Right1
(17) 944 556 885 00sound absorber Left1
17 944 556 886 00sound absorber Right1
  wheel housing
18 944 556 079 00sound absorber  1
  boot floor plate
18A 477 863 893 Asound absorber  1
  boot floor plate

Pos__Part_Number__DescriptionRemarkQty.Model
19 477 863 865insulation side section Left 1
20 477 863 867insulation spare-wheel well   1
21 993 556 521 00insulation door   2
22 944 556 609 00sound absorber roof   1
23 999 049 002 40push button   13
24 944 556 849 00clip   6
25 999 049 001 40plastic nut   6
26 N 900 661 01clamping washer   5
