Porsche 924S Linings Teile

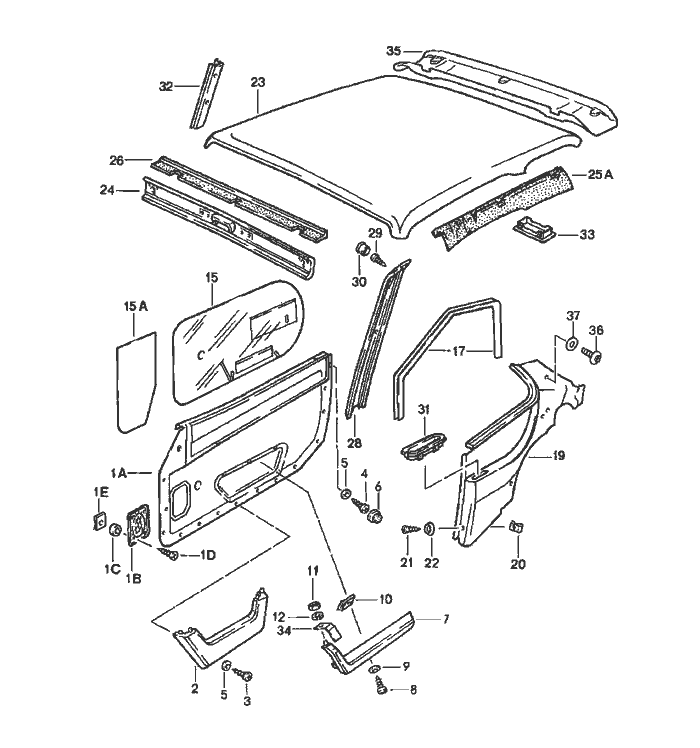

Linings


Pos__Part_Number__DescriptionRemarkQty.Model
  linings
(1A) 477 867 011 Mdoor trim panel power windows manually leatherette Left1
 RD1light grey
 KZ7black
 WR1black/ grey-burgundy 88  M 756
1A 477 867 012 Mdoor trim panel power windows manually leatherette Right1
 RD1light grey
 KZ7black
 WR1black/ grey-burgundy 88  M 756
(1A) 477 867 011 Qdoor trim panel power windows manually leatherette Left1
 KZ8brown
(1A) 477 867 012 Qdoor trim panel power windows manually leatherette Right1
 KZ8brown
(1A) 477 867 011 Ndoor trim panel power windows electric leatherette Left Hand Drive \/ Left Side1
 RD1light grey
 KZ7black
1A 477 867 012 Ndoor trim panel power windows electric leatherette Left Hand Drive \/ Right Side1

Pos__Part_Number__DescriptionRemarkQty.Model
 RD1light grey
 KZ7black
(1A) 477 867 011 Ndoor trim panel leatherette/ pin stripe velour Left Hand Drive \/ Left Side1
 GM5black/ black-white
 RD4black/ light grey
1A 477 867 012 Ndoor trim panel leatherette/ pin stripe velour Left Hand Drive \/ Right Side1
 GM5black/ black-white
 RD4black/ light grey
(1A) 477 867 011 Ndoor trim panel leatherette/ pin stripe flannel Left Hand Drive \/ Left Side1
 RD6black/ light grey
 RD3black/ anthracite
1A 477 867 012 Ndoor trim panel leatherette/ pin stripe flannel Left Hand Drive \/ Right Side1
 RD6black/ light grey
 RD3black/ anthracite
(1A) 477 867 011 Ndoor trim panel leatherette/ porsche lettering cloth Left Hand Drive \/ Left Side1
 RD5black/ light grey
 RD2black/ black

Pos__Part_Number__DescriptionRemarkQty.Model
1A 477 867 012 Ndoor trim panel leatherette/ porsche lettering cloth Left Hand Drive \/ Right Side1
 RD5black/ light grey
 RD2black/ black
(1A) 477 867 011 Rdoor trim panel power windows electric leatherette Left Hand Drive \/ Left Side1
 KZ8brown
1A 477 867 012 Rdoor trim panel power windows electric leatherette Left Hand Drive \/ Right Side1
 KZ8brown
(1A) 477 867 011 Rdoor trim panel leatherette/ porsche lettering cloth Left Hand Drive \/ Left Side1
 RD7brown/brown
1A 477 867 012 Rdoor trim panel leatherette/ porsche lettering cloth Left Hand Drive \/ Right Side1
 RD7brown/brown
(1A) 477 867 011 Rdoor trim panel leatherette/ pin stripe flannel Left Hand Drive \/ Left Side1
 RD8brown/brown
1A 477 867 012 Rdoor trim panel leatherette/ pin stripe flannel Left Hand Drive \/ Right Side1
 RD8brown/brown
(1A) 477 867 011 Rdoor trim panel leatherette/ pin stripe velour Left Hand Drive \/ Left Side1

Pos__Part_Number__DescriptionRemarkQty.Model
 JS5brown/ brown-beige
1A 477 867 012 Rdoor trim panel leatherette/ pin stripe velour Left Hand Drive \/ Right Side1
 JS5brown/ brown-beige
1B 477 867 081loudspeaker grille  2
 01Cblack
 8CJlight grey
 4RBbrown
1C 477 035 375bush  8
1D N 014 091 4tapping Schraube B 3,9 X 16  8
1E N 100 472 01speed nut B 9  8
(2) 477 867 033 Apackage box Left1
 1DRblack
 2FRblack/light grey
 9RRbrown/brown
2 477 867 034 Apackage box Right1
 1DRblack
 2FRblack/light grey
 9RRbrown/brown
3 N 013 962 3tapping Schraube B 3,9 X 16  6
4 311 867 167tapping Schraube 4,2  4
5 900 151 028 02washer 4,3  10
6 311 867 169cap  4

Pos__Part_Number__DescriptionRemarkQty.Model
 01Cblack
 90Vbrown
(7) 477 867 171armrest Left 1
 041black
 89Sbrown
 5FAlight grey
7 477 867 172armrest Right 1
 041black
 89Sbrown
 5FAlight grey
8 900 143 046 02tapping Schraube   6
  B 4,8 X 16
9 N 012 225 3spring washer   6
  B 5
10 999 591 722 02speed nut   6
  B 4,8 X 19,8
11 900 910 010 09lock nut   2
  M 6
12 N 011 524 7washer   2
  6
(15) 944 555 177 05seal Left 1
15 A 477 867 178 Dsealing film Right 1
15 944 555 178 05seal Right 1
(15A) 477 867 179sealing film Left 1
15A 477 867 180sealing film Right 1
  loudspeaker
16 823 867 299clip   25
17 944 555 031 01door seal Left 1
(17) 944 555 032 01door seal Right 1

Pos__Part_Number__DescriptionRemarkQty.Model
19 944 555 021 00side trim panel F >>92GN4 00326   1
 1DBblack
 4RBbrown
(19) 944 555 022 00side trim panel F >>92GN4 00326   1
 1DBblack
 4RBbrown
19 944 555 021 01side trim panel F >>92GN4 00326   1 M 186
 1DBblack
 4RBbrown
(19) 944 555 022 01side trim panel F >>92GN4 00326   1 M 186
 1DBblack
 4RBbrown
19 944 555 021 07side trim panel F 92GN4 00327>> Left 1
 1DBblack
 4RBbrown
(19) 944 555 022 07side trim panel F 92GN4 00327>> Right 1
 1DBblack
 4RBbrown
20 N 015 438 1speed nut B 3,5 X 16,5   2
21 N 014 087 5rais. counters. h. tap. s. B 3,5 X 16   4
22 N 011 578 1cone washer 3,7   4
23 477 867 503rooflining   1

Pos__Part_Number__DescriptionRemarkQty.Model
 05Tblack
 4RBbrown
(23) 944 555 519 00rooflining   1 M 650
 05Tblack
 4RBbrown
-477 867 543roof strut   3
24 477 867 511lining roof frame Vorder 1
 1DBblack
 4RBbrown
25A 944 555 115 00roof frame padding Left 1
(25A) 944 555 116 00roof frame padding Right 1
(26) 944 564 531 01roof frame padding Vorder 1 M 650
28 477 867 553 Alining windscreen frame Left 1
 1DBblack
 4RBbrown
(28) 477 867 554 Alining windscreen frame Right 1
 1DBblack
 4RBbrown
29 N 013 962 2tapping Schraube B 3,9 X 16   6
30 914 552 233 10filler piece   6
 01Cblack
 90Vbrown
31 477 867 653rosette   2
32 477 867 655lining centre pillar Left 1

Pos__Part_Number__DescriptionRemarkQty.Model
 05Tblack
 4RBbrown
(32) 477 867 656lining centre pillar Right 1
 05Tblack
 4RBbrown
33 477 867 923 Acap   2
 01Cblack
 89Sbrown
(34) 477 867 153fastening hook Left 1
34 477 867 154fastening hook Right 1
35 944 555 941 00lining F >>92HN4 50198 Hinter 1 M 650
 05Tblack
 4RBbrown
(35) 944 555 041 01lining F 92HN4 50199>> Hinter 1 M 650
 05Tblack
 4RBbrown
36 211 857 785 Astopper   2
 01Cblack
37 A 111 857 795cover disc   2
 043black
37 A 111 857 795cover disc   2
 01Cblack
37 999 703 403 40cover disc   2
