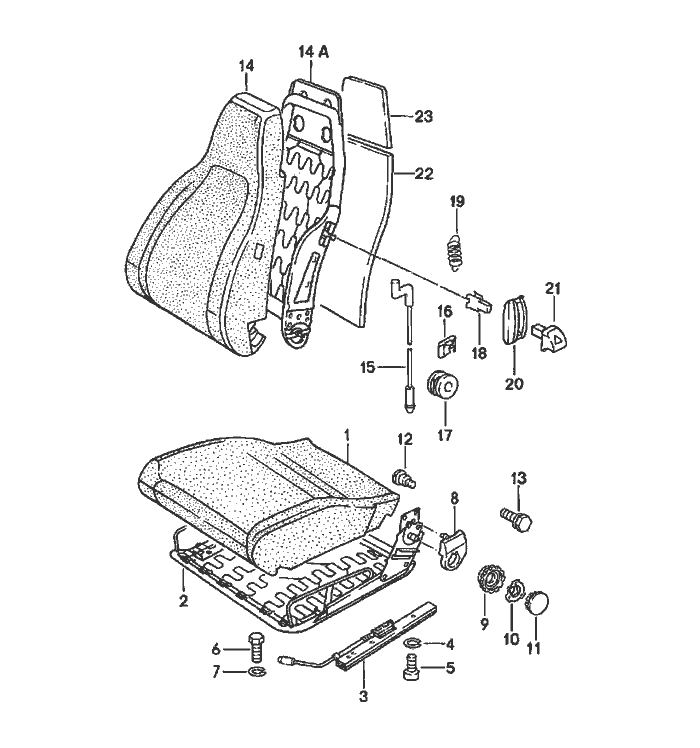

Porsche 924S Vorder Seat Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		front seat
		single parts
1	911 521 385 01	foam part	Left		1
		seat cushion
(1)	911 521 386 01	foam part	Right		1
		seat cushion
2	911 521 069 56	seat frame	Left		1
(2)	911 521 070 56	seat frame	Right		1
3	A 477 881 211	seat rail	Left		1
		with locking device
(3)	A 477 881 212	seat rail	Right		1
		with locking device
(3)	A 944 521 491 00	seat rail			2
(3)	944 521 491 00	seat rail			2
		inner
		see tpi
		GR.8 NR.34
4	N 012 006 4	lock ring			8
		B 6
5	900 067 008 02	pan-head Schraube			8
		M 6 X 12
6	N 010 215 13	hexagon-head bolt			8
		M 6 X 15
7	N 012 006 4	lock ring			8
		B 6
8	911 521 359 02	cover	Left		1
(8)	911 521 360 02	cover	Right		1
9	911 521 381 00	shifting wheel			2
		for backrest adjustment
10	911 521 571 00	tensioning spring			2
11	911 521 383 00	cover			2
12	911 521 371 00	Schraube			2
13	911 521 547 00	hexagon-head bolt			4

Pos	__Part_Number__	Description	Remark	Qty.	Model
14A	A 911 521 027 58	backrest frame	Left		1
14A	911 521 027 58	backrest frame	Left		1
(14A)	911 521 028 58	backrest frame	Right		1
(14A)	911 521 028 58	backrest frame	Right		1
14	911 521 393 00	foam part			2
		backrest
(14)	A 911 521 393 00	foam part			2
		backrest
15	911 521 361 00	cable			2
		for
		release
16	911 521 369 00	terminal			2
		for
		cable
17	911 521 343 00	guide bush			2
18	311 881 247	clamp			2
19	311 881 287 A	spring			2
20	911 521 815 00	rosette			2
	01C	satin black
21	911 521 817 00	control button			2
	01C	satin black
22	911 521 575 00	filler piece			2
		for
		backrest frame
23	911 521 435 00	filler piece			2
		for
		backrest frame

Pos	__Part_Number__	Description	Remark	Qty.	Model
-	477 898 021	repair seat complete with	Left		1
		seat rail
		without
		foam part without
		cover
		for
		seat and backrest surface
-	477 898 022	repair seat complete with	Right		1
		seat rail
		without
		foam part without
		cover
		for
		seat and backrest surface
