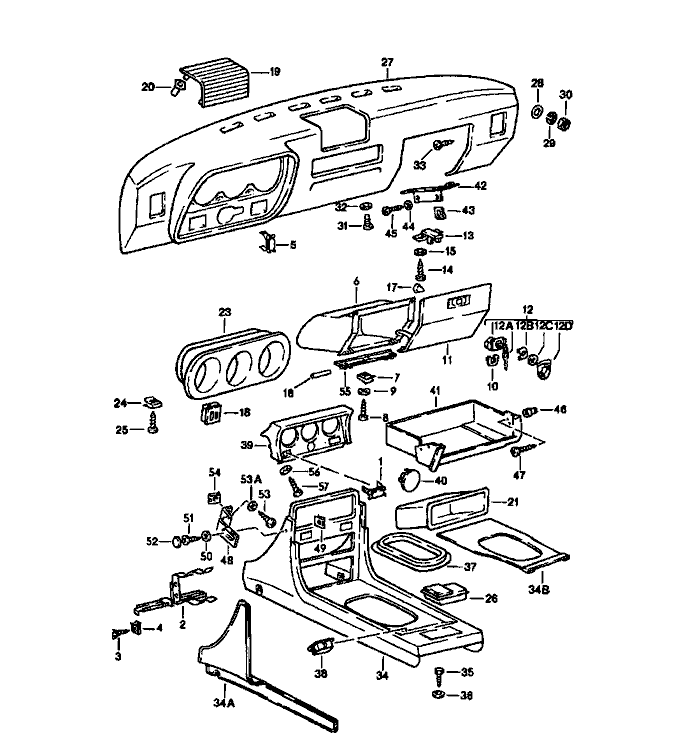

Porsche 924S Dashboard Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		dashboard
		centre console
1	133 957 087	cover			1
2	477 857 067 A	support			1
		centre console
3	N 013 957 5	tapping Schraube			2
		BZ 3,5 X 9,5
4	N 015 422 2	speed nut			2
		B 4,2 X 17
5	133 957 087	cover			1	(I)
6	477 857 095 C	glove compartment			1
7	N 015 422 2	speed nut			2
		B 4,2 X 17
8	N 013 964 4	tapping Schraube			5
		B 4,2 X 16
9	N 011 692 3	washer			5
10	133 857 119	clamp			1
	01C	black
11	477 857 123	glove compartment cover	Left Hand Drive		1
	1DB	black
11	477 857 123 A	glove compartment cover	Left Hand Drive		1
	4RB	brown
12	477 857 133 C	lock			1
		with 2 secondary keys
	01C	black
	90V	brown
12A	477 857 135 A	blank key			2
12A	477 857 136 A	key			1
		with stipulated lock number
12B	N 012 852 1	clamping washer			1

Pos	__Part_Number__	Description	Remark	Qty.	Model
12C	N 011 536 1	washer A 2,2			1
12D	944 559 097 00	crest			1
13	477 857 143	lock bearing			1
	01C	black
14	900 143 070 02	oval-head sheetmetal Schraube B 4,2 X 13			2
15	900 025 002 02	washer A 4,3			2
16	N 013 209 2	straight pin 4 H 8 X 36			2
17	N 020 022 3	stopper A 8 X 1			1
18	477 857 137 A	cover light switch	Left		1
	1DB	black
	4RB	brown
(18)	477 857 138 A	cover switch rear window heating	Right		1
	1DB	black
	4RB	brown
19	477 857 187	loudspeaker grille			1
	1DB	black
	4RB	brown
20	477 857 821	grommet loudspeaker grille			4
21	481 857 233 A	package box			1
23	477 857 283 A	dashboard trim			1
	01C	black		-87
	FP7	black		88

Pos	__Part_Number__	Description	Remark	Qty.	Model
	FP8	brown		88
24	999 591 722 02	speed nut B 4,8 X 19,8			2
25	900 143 046 02	tapping Schraube B 4,8 X 16			2
26	944 552 305 00	ashtray			1
	1DB	black
	4RB	brown
27	477 857 881 A	dashboard	Left Hand Drive		1
	1DB	black
27	477 857 881 C	dashboard	Left Hand Drive		1
	4RB	brown
28	N 011 612 3	washer R 7			2
29	N 012 036 1	lock ring 6			2
30	900 076 010 02	hexagon nut M 6			2
31	N 014 140 5	oval-head Schraube AM 6 X 15			1
32	N 011 524 7	washer A 6,4			1
33	900 143 007 02	tapping Schraube B 4,2 X 19			4
34	477 857 931 A	centre console			1
	1DB	black
	4RB	brown
34A	477 863 741	lining	Left		1
	1DR	black
	2FR	light grey
	9RR	brown

Pos	__Part_Number__	Description	Remark	Qty.	Model
	4JR	burgundy		88		M 756
(34A)	477 863 742	lining	Right		1
	1DR	black
	2FR	light grey
	9RR	brown
	4JR	burgundy		88		M 756
34B	477 863 749	carpet			1
	1DR	black
	2FR	light grey
	9RR	brown
	4JR	burgundy		88		M 756
35	N 013 891 1	tapping Schraube M 8 X 15			2
36	N 011 533 2	washer B 8,4			2
37	477 857 975	support frame			1
	01C	black
	89S	brown
38	911 552 469 00	trim cover			X
39	477 857 977 B	instrument insert			1
	1DB	black
	4RB	brown
40	841 863 267	cover			X
	041	black
41	477 857 836	shelf	Left Hand Drive		1
	01C	black
	89S	brown
42	477 857 195 B	support	Left Hand Drive		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
43	N 015 422 2	speed nut	Left Hand Drive		2
		B 4,2 X 17
44	900 025 002 02	washer	Left Hand Drive		2
		A 4,3
45	N 013 964 4	tapping Schraube	Left Hand Drive		2
		B 4,2 X 16
46	477 857 173	clip	Left Hand Drive		1
47	N 013 971 3	tapping Schraube	Left Hand Drive		1
		B 4,8 X 22
48	477 857 941	bracket			2
49	N 015 422 2	speed nut			2
50	900 151 028 02	washer			2
51	311 867 167	tapping Schraube			2
52	311 867 169	cap			2
	01C	black
	90V	brown
53	900 143 007 02	tapping Schraube			2
		B 4,2 X 13
53A	900 904 013 02	washer			2
		A 4,55
54	999 591 850 02	speed nut			2
55	944 552 195 00	hinge			1
-	N 013 981 3	tapping Schraube			1
		B 3,9 X 13
56	N 011 535 5	washer			2
		A 3,2
57	N 013 953 9	tapping Schraube			2
		B 2,9 X 9,5
