Porsche 924S Moulding Teile

Moulding

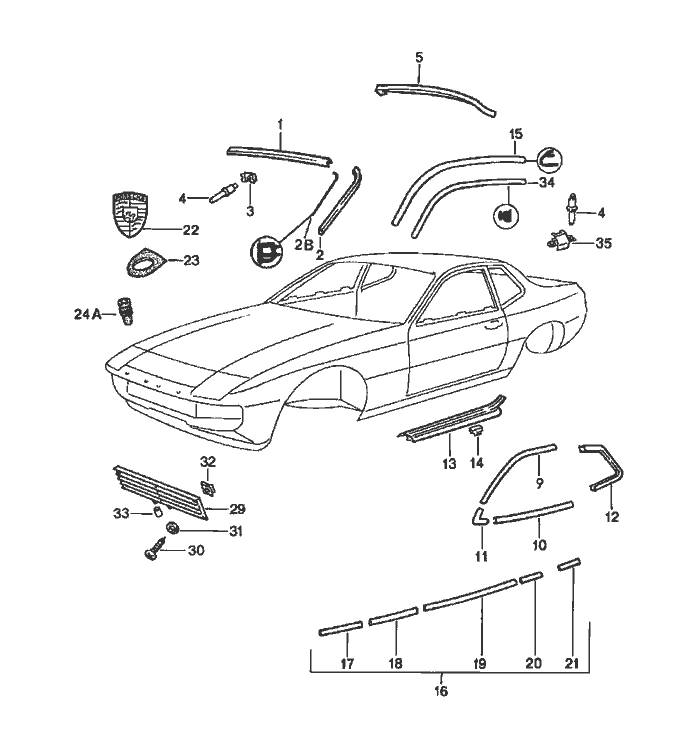

Pos__Part_Number__DescriptionRemarkQty.Model
  moulding
1 944 559 043 00moulding   1
2 944 559 045 00moulding Left 1
(2) 944 559 046 00moulding Right 1
2B 944 559 027 00gasket Left 1
(2B) 944 559 028 00gasket Right 1
3 477 853 659 Bclamp   16
4 431 805 121 Abolt   X
(5) 477 853 313 Atrim frame Hinter 1
9 477 853 373 Bmoulding Left 1
(9) 477 853 374 Bmoulding Right 1
10 477 853 371 Bmoulding Left 1
(10) 477 853 372 Bmoulding Right 1
11 477 853 375 Amoulding   2
12 477 853 365 Atrim frame Left 1
(12) 477 853 366 Atrim frame Right 1
13 477 853 657 Ascuff plate Left 1
(13) 477 853 658 Ascuff plate Right 1
14 477 853 655clamp   10
15 944 559 705 00roof edge strip Left 1
(15) 944 559 706 00roof edge strip Right 1
16 * 477 853 995set of moldings   1
17 * 477 853 981side guard /V/L  1
(17) * 477 853 982side guard /V/R  1
  285 MM
18 * 477 853 983side guard /V/L  1
(18) * 477 853 984side guard /V/R  1
  395 MM

Pos__Part_Number__DescriptionRemarkQty.Model
19 * 477 853 985side guard Left 1
(19) * 477 853 986side guard Right 1
  door
  1123 MM
20 * 477 853 987side guard /H/L  1
(20) * 477 853 988side guard /H/R  1
  285 MM
21 * 477 853 989side guard /H/L  1
(21) * 477 853 990side guard /H/R  1
  440 MM
22 A 901 559 210 20lid emblem   1
22 993 559 211 00lid emblem   1
23 901 559 215 20desk pad   1
24A 999 702 175 50grommet   2
(29) 944 559 135 00radiator grille   1
30 900 143 064 07tapping Schraube   2
  B 3,5 X 25
31 900 151 028 02washer   2
  4,3
32 N 015 438 1speed nut   2
  B 3,5 X 16,5
33 477 853 661grommet   2
34 944 559 707 00sealing rubber   2
35 999 591 732 02clamp   12
