Porsche 924S Luft Duct Teile

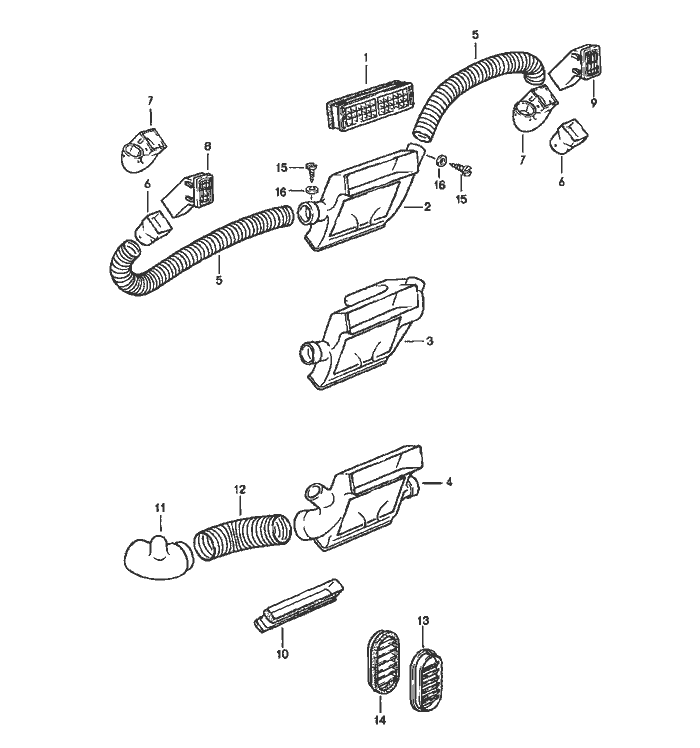

Luft Duct


Pos__Part_Number__DescriptionRemarkQty.Model
  air duct
1 944 572 059 00centre nozzle  1
 1DBblack
 4RBbrown
3 944 573 067 00mixing chamber Left Hand Drive1 M 573
5 477 819 395hose  2
6 477 819 717connecting piece Left Hand Drive \/ Left Side1
7 477 820 409connecting piece Left Hand Drive \/ Right Side1
8 944 572 291 00side vent Left1
 1DBblack
 4RBbrown
9 944 572 292 00side vent Right1
 1DBblack
 4RBbrown
10 944 572 065 00adapter  1
13 477 819 175cover lock pillar  2
14 477 819 179 Acover Left1
(14) 477 819 180 Acover Right1
15 900 143 031 02oval-head sheetmetal Schraube B 4,2 X 9,5  4
16 900 151 028 02washer B 4,3 X 12  4
