Porsche 924S Vacuum Control Teile

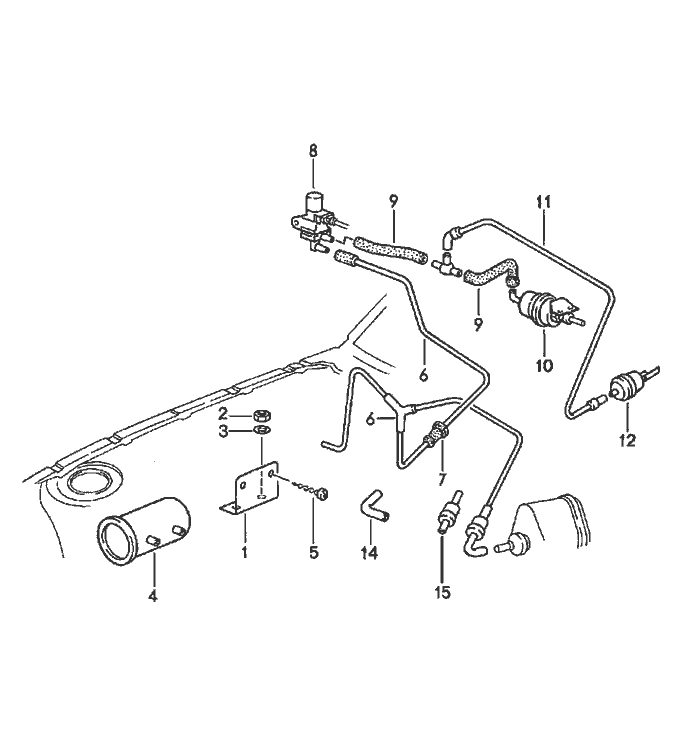

Vacuum Control


Pos__Part_Number__DescriptionRemarkQty.Model
  vacuum control
(1) 944 573 465 01support vacuum reservoir   1
2 900 076 010 02hexagon nut M 6   2
3 N 012 006 4lock ring B 6   2
4 945 573 808 00vacuum reservoir   1
5 N 090 186 1tapping Schraube B 4,8 X 13   1
6 944 573 099 02vacuum line Left Hand Drive 1
7 477 819 849grommet   1
8 944 573 165 00solenoid valve Left Hand Drive 1
9 477 820 557vacuum line Left Hand Drive 1
10 477 820 545vacuum unit Left Hand Drive 1
11 944 573 101 00vacuum line Left Hand Drive 1
12 944 573 053 00vacuum unit   1
14 928 574 717 02moulded hose   1
15 928 537 361 02valve   1
