Porsche 924S Luft Conditioner Teile

Luft Conditioner

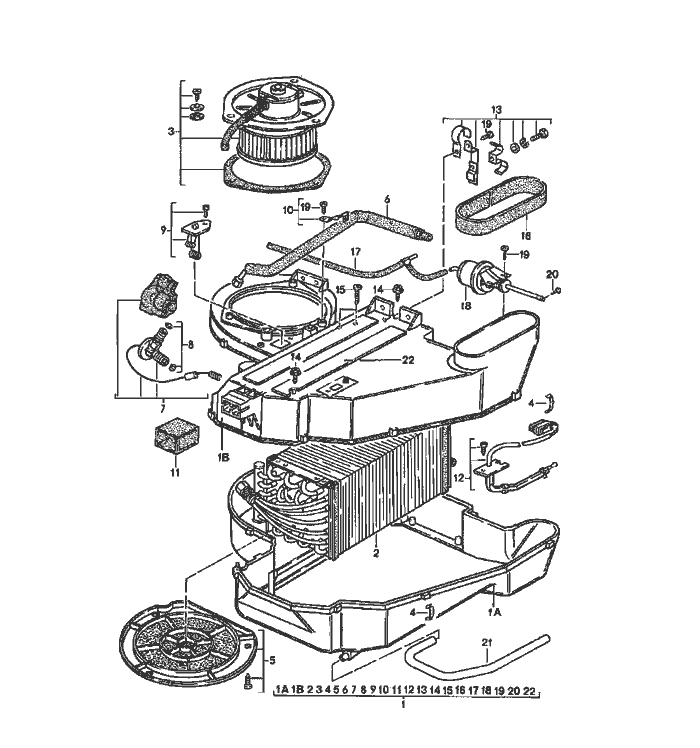

Pos__Part_Number__DescriptionRemarkQty.Model
  air conditioner   M 573
  left-hand drive
1 477 820 002 Aair conditioner  1
1A 477 820 421 Ahousing  1
1B 477 820 420 Ahousing  1
2 477 820 903evaporator  1
3 477 820 905blower  1
4 477 820 449clamp  11
5 477 820 907air cleaner  1
6 477 820 459pressure line  1
7 477 820 909expansion valve  1
8 477 820 911set of o-rings  1
9 477 820 915resistor  1
10 477 820 917retaining bow  1
11 477 820 447 Arubber boot  1
12 477 820 901temperature sensor  1
13 477 820 919pipe clamp  1
14 477 820 437tapping Schraube  2
15 477 820 435 Atapping Schraube  2
16 477 820 507 Ainsulator  1
17 477 820 557vacuum line  1
18 477 820 545vacuum unit  1
19 477 820 435 Dtapping Schraube  2
20 477 820 555pan-head Schraube  2
21 477 820 523water drain hose  1
22 477 820 447gasket  2
