Porsche 924S Starter Teile

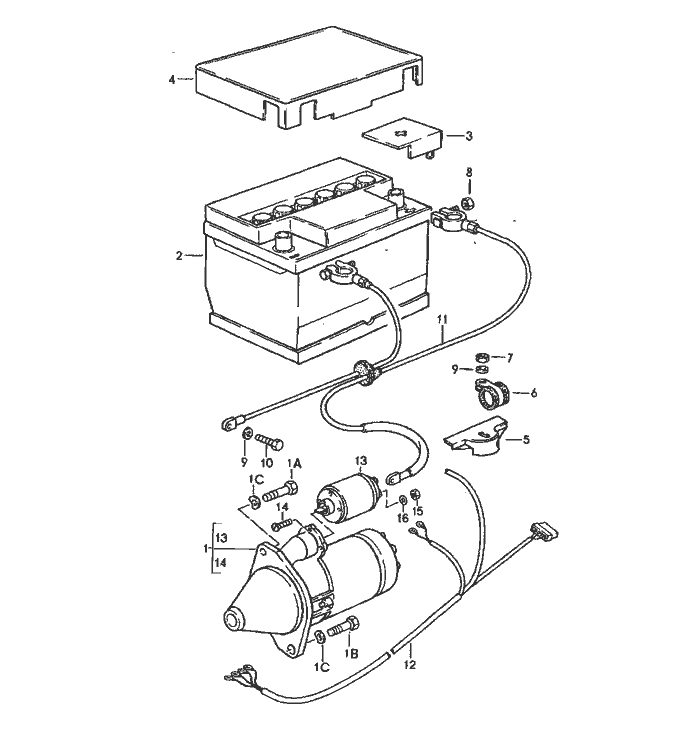

Pos	__Part_Number__	Description	Remark	Qty.	Model
		starter
		battery
		wiring harnesses
1	951 604 101 00	starter			1
1A	N 010 491 1	hexagon-head bolt			1
		M 12 X 50
1B	N 040 253 1	hexagon-head bolt			1
		M 12 X 35
1C	900 028 014 02	spring washer			2
		B 12
2	944 611 101 00	battery	Left Hand Drive		1
		50 AH
2	477 915 107 A	battery			1
		63 AH
4	281 915 411 F	battery cover			1
		for
		50 AH
		battery
(4)	477 915 411 A	battery cover			1
		for
		63 AH
		battery
5	914 611 233 10	tension terminal			1
6	N 020 607 1	clamp			1
		B 20 X 20 GI
7	477 915 489	hexagon nut			1
		M 8
8	900 076 010 02	hexagon nut			2
		M 6
9	900 027 015 02	lock ring			1
		B 8
10	N 010 239 11	hexagon-head bolt			1
		M 8 X 18
11	944 612 027 01	wiring harness	Left Hand Drive		1
		battery
		starter

Pos	__Part_Number__	Description	Remark	Qty.	Model
12	944 607 029 00	wiring harness starter generator		1
12	944 607 029 01	wiring harness starter generator		1	M 573
13	951 604 902 00	solenoid engaging switch		1
14	951 604 901 00	countersunk-head Schraube		3
15	N 011 005 14	hexagon nut M 5		1
16	900 025 003 02	washer A 5,3		1
