Porsche 924S Kopflamp Teile

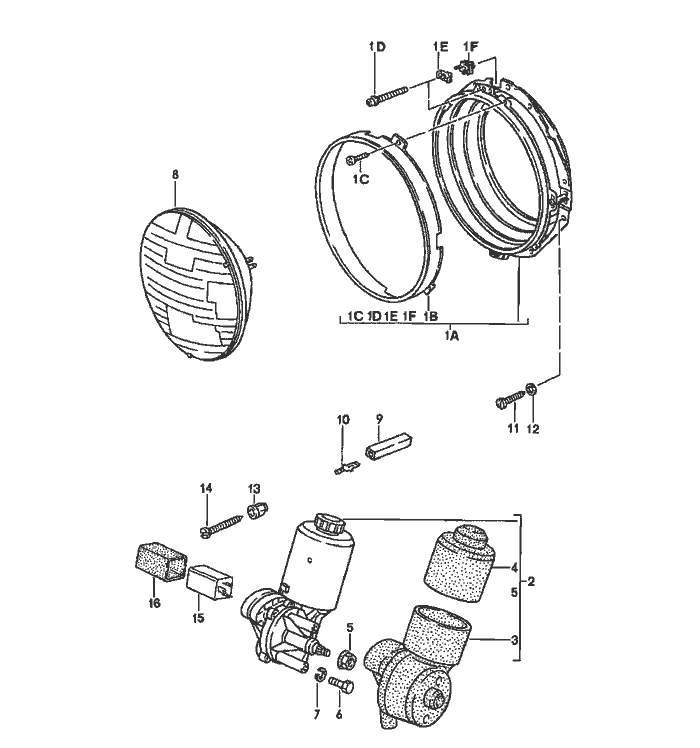

Pos	__Part_Number__	Description	Remark	Qty.	Model
		headlamp
		electric motor
		pop-up headlight
1A	477 941 050 A	retaining frame		2
1B	111 941 049 A	retaining ring		2
1C	N 013 961 2	tapping Schraube		6
1D	477 941 143	adjusting Schraube		4
1E	477 941 145	retainer spring		4
1F	477 941 147	threaded piece		4
2	477 941 379 B	electric motor		1
		for
		pop-up headlight
3	477 941 386	protection cap		1
		lower
4	477 941 387	protection cap		1
		upper
-	477 941 383	diode		X
		for
		electric motor
		pop-up headlight
5	999 084 045 02	lock nut		1
		M 6
(5)	999 084 049 02	lock nut		1
		M 8
6	999 072 005 09	hexagon-head bolt		3
		M 6 X 12
7	N 012 006 4	lock ring		3
		B 6
(8)	999 631 127 90	headlamp unit		2
		sealed-beam
		12V 60/40W
9	111 971 977	plug with guide		6
10	111 971 986	flat plug		6
		6,3 X 0,8

Pos	__Part_Number__	Description	Remark	Qty.	Model
11	N 013 964 4	tapping Schraube B 4,2 X 16		8
(11)	900 143 041 00	tapping Schraube B 3,9 X 19		8
12	900 025 003 02	washer A 5,3		8
(12)	900 025 002 02	washer A 4,3		8
13	477 857 173	clip		2
14	N 043 979 2	tapping Schraube BZ 4,2 X 45		2
15	111 943 383 C	relay		1
16	477 971 923	protection cap		1
-	944 612 035 00	wiring harness for headlamp		1
		fog headlamp see group 9/98/00
