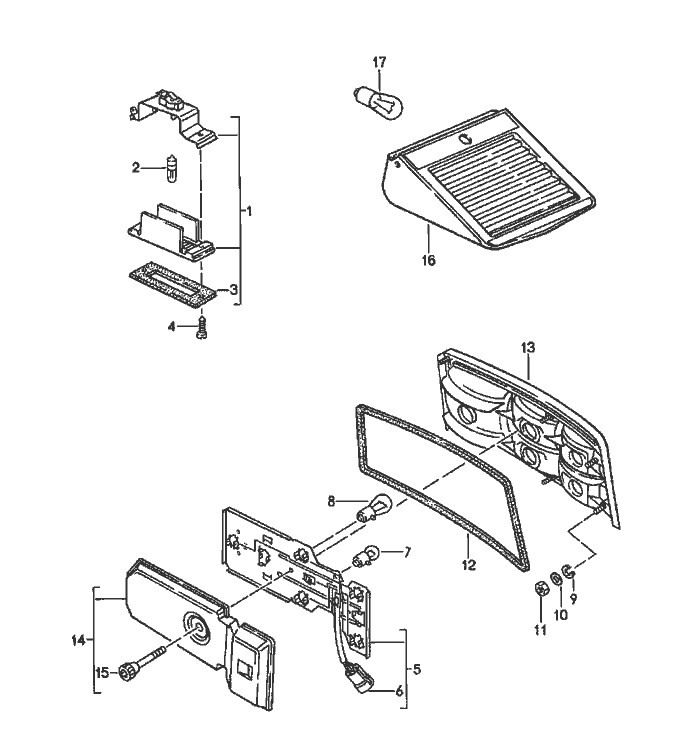

Porsche 924S License Plate Light Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		license plate light
		rear light
1	477 943 021 A	license plate light			2
2	900 631 103 90	bulb			2
		12 V, 4 W
3	477 943 131	gasket			2
4	N 013 961 2	tapping Schraube			2
		B 3,9 X 13
(5)	477 945 113 A	bulb holder	Left		1
(5)	477 945 114 A	bulb holder	Right		1
6	803 971 980	pin connector socket			2
		7-pole
7	900 631 104 90	bulb			2
		12V, 5W
8	900 631 127 90	bulb			7
		12V, 21W
9	N 012 005 3	lock ring			12
		B 5
10	N 012 222 4	spring washer			12
		A 5
11	N 011 005 14	hexagon nut			12
		M 5
-	000 043 172 00	sealing cord			*
		$ 9 MM
		roller
		10 M
12	-	1070 MM			2
(13)	477 945 213	housing	Left		1
		with
		lens
(13)	477 945 214	housing	Right		1
		with
		lens
14	477 945 285	cap			2
15	477 945 285	cap			2

Pos	__Part_Number__	Description	Remark	Qty.	Model
16	928 631 070 00	additional brake light		1
-	928 631 061 00	frame for light		1
17	900 631 127 90	bulb		1
		12V, 21W
