Porsche 924S Reperatur Kits Teile

Reperatur Kits

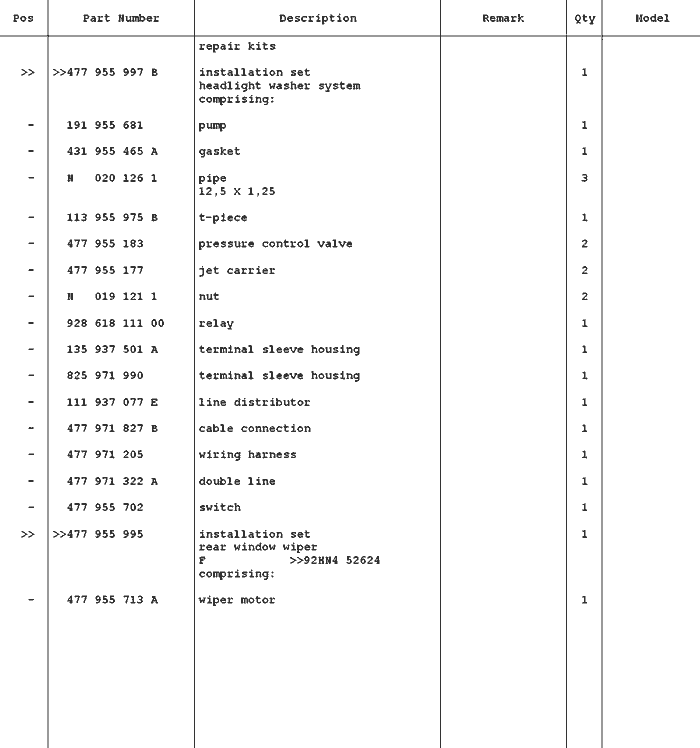

Pos__Part_Number__DescriptionRemarkQty.Model
  repair kits
>> 477 955 997 Binstallation set  1
  headlight washer system
  comprising:
-191 955 681pump  1
-431 955 465 Agasket  1
-N 020 126 1pipe  3
  12,5 X 1,25
-113 955 975 Bt-piece  1
-477 955 183pressure control valve  2
-477 955 177jet carrier  2
-N 019 121 1nut  2
-928 618 111 00relay  1
-135 937 501 Aterminal sleeve housing  1
-825 971 990terminal sleeve housing  1
-111 937 077 Eline distributor  1
-477 971 827 Bcable connection  1
-477 971 205wiring harness  1
-477 971 322 Adouble line  1
-477 955 702switch  1
>> 477 955 995installation set  1
  rear window wiper
  F >>92HN4 52624
  comprising:
-477 955 713 Awiper motor  1
-477 955 715 Bmounting plate  1
-N 012 226 5spring washer  3
  B 6
-900 076 010 02hexagon nut  3
  M 6
-477 955 737cap  1

Pos__Part_Number__DescriptionRemarkQty.Model
-477 955 439grommet  2
-477 955 435 Awasher  1
-311 955 243 Ahexagon nut  1
  M 12 X 1
-211 955 275 Acap  1
-477 955 409 Awiper arm  1
-999 084 045 02lock nut  1
-928 628 218 01wiper blade  1
-477 971 345wiring harness  1
-477 971 346wiring harness  1
-477 955 701rocker switch  1
-111 941 189drain bush  1
-999 652 106 02flat receptacle  3
  6,3 X 1
-N 018 007 4insulating hose  1
  100 MM
  use also:
-944 628 071 00mounting plate  1
>> 477 955 995 Ainstallation set  1
  rear window wiper
  F 92HN4 52625>>
  comprising:
-477 955 713 Awiper motor  1
-944 628 071 01mounting plate  1
-N 012 226 5spring washer  3
  B 6
-900 076 010 02hexagon nut  3
  M 6
-477 955 737cap  1
-477 955 439grommet  2
-477 955 435 Awasher  1

Pos__Part_Number__DescriptionRemarkQty.Model
-311 955 243 Ahexagon nut  1
  M 12 X 1
-211 955 275 Acap  1
-477 955 409 Awiper arm  1
-999 084 045 02lock nut  1
-928 628 218 01wiper blade  1
-477 971 345 Awiring harness  1
-477 971 346 Awiring harness  1
-477 955 701rocker switch  1
-937 503 255 01spacer  2
-N 011 524 7washer  2
  A 6,4
-N 014 140 5oval-head Schraube  2
  M 6 X 15
-111 953 547grommet  2
>> 477 941 903 Ainstallation set  1
  fog headlamp
  comprising:
-477 941 703 Bfog headlamp  2
-900 631 126 90halogen bulb  2
  H3 12V/55W
-N 011 010 6hexagon nut  2
  M 10
-900 027 016 02lock ring  2
  B 10
-900 025 008 09washer  2
  A 10,5
-131 867 549clamp  2
-477 941 535switch  1
-141 957 397 Abulb socket  1
-900 631 132 90bulb  1
  W 12V/1,2W

Pos__Part_Number__DescriptionRemarkQty.Model
-477 963 137relay  1
-477 971 490 Awiring harness  1
-477 971 491 Awiring harness  1
-477 971 827 Bcable connection  1
  use also:
-477 971 350single line  1
-911 631 964 00light-diffusing lens  2
-911 631 956 00gasket  2
  for
  light-diffusing lens
-911 631 959 28ring for fog headlamp  2
>> 000 043 095 00installation set -87 1
  oil level
  warning system
  comprising:
-944 612 911 01wiring harness  1
-944 612 923 01wiring harness  1
-944 617 150 00relay  1
-944 101 033 00heat shield  1
-900 075 085 02hexagon-head bolt  2
  M 8 X 20
-900 025 007 02washer  2
  A 8,4
-477 971 881 Aretaining bracket  1
-999 651 162 40cable holder  1
-999 513 002 40tie-wrap  3
-N 017 490 6flat connector  1
-171 971 999terminal sleeve housing  2
-000 043 095 01installation instructions  1
