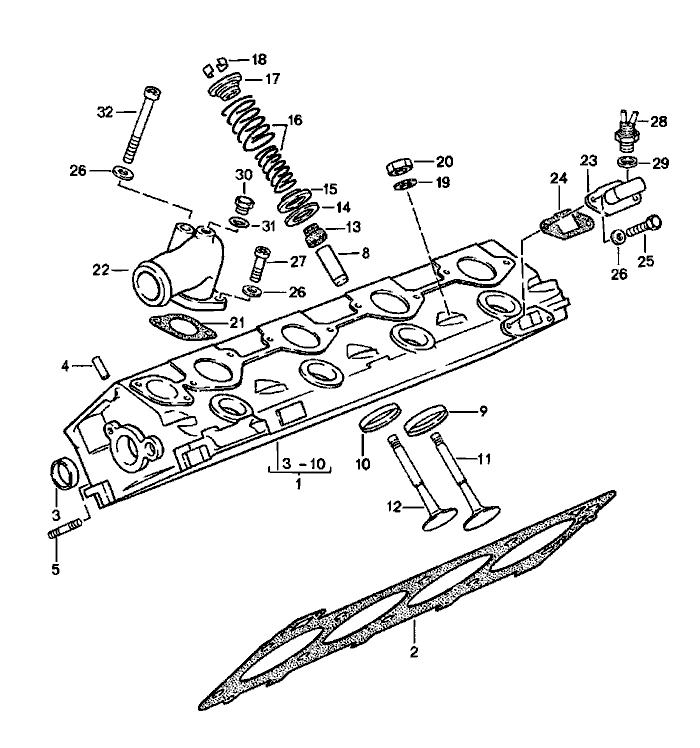

Porsche 944 Zylinder Kopf Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		cylinder head
		valves
1	944 104 033 05	cylinder head		1
2	951 104 374 02	cylinder head gasket		1
(2)	951 104 374 50	cylinder head gasket		1
		for
		recond. cylinder heads
3	900 036 005 02	lid		2
4	900 302 019 00	straight pin		2
5	999 062 044 02	stud		8
		M 8 X 30
8	A 944 104 328 51	valve guide		8
8	944 104 328 51	valve guide		8
		oversize
9	944 104 331 51	valve seat ring		4
		intake
		oversize
10	944 104 333 50	valve seat ring		4
		exhaust
		oversize
11	928 105 409 02	intake valve		4
12	928 105 410 04	exhaust valve		4
13	* 928 104 193 12	valve stem seal		8
14	928 105 468 03	washer		X
		0,5 MM
14	928 105 470 03	washer		X
		1,0 MM
15	928 105 469 06	washer		8
16	928 105 905 09	set of valve springs		8
17	928 105 449 04	concave washer		8
18	901 105 417 00	collet		16
19	944 104 229 00	washer		10

Pos	__Part_Number__	Description	Remark	Qty.	Model
20	999 076 043 02	hexagon nut		10
		M 12 X 1,5
21	* 944 104 311 00	gasket		1
22	944 104 315 04	cooling water socket		1
		M >> 43D 3439			M44.02
		M >> 43D 5517			M44.04
		use also:
		944.106.239.02
(23)	944 104 317 05	adapter		1
24	* 928 106 197 04	gasket		1
25	900 075 079 02	hexagon-head bolt		2
		M 8 X 20
26	N 011 525 13	washer		4
		A 8,4
27	900 119 048 02	pan-head Schraube	-83	2
		M 8 X 25
27	N 014 725 2	pan-head Schraube	84	2
		M 8 X 25
28	058 131 851 A	thermo valve		1
29	N 013 808 3	sealing ring		1
		A 10 X 16
30	931 106 156 00	Schraube plug		1
31	N 013 830 7	sealing ring		1
		A 8 X 12
32	900 119 086 02	pan-head Schraube	-83	1
		M 8 X 75
32	N 044 732 1	pan-head Schraube	84	1
		M 8 X 75
