Porsche 944 Antrieb Ausgleichswelle Nockenwelle Teile

Antrieb Ausgleichswelle Nockenwelle


Pos__Part_Number__DescriptionRemarkQty.Model

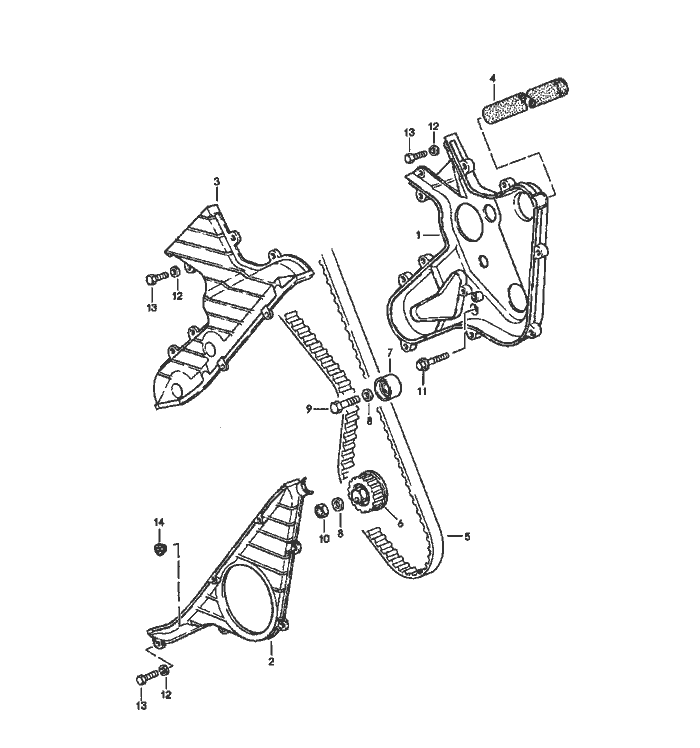

  driving mechanism camshaft
1 944 105 045 04toothed belt covering  1
2 944 105 048 00toothed belt covering  1
3 944 105 047 00toothed belt covering  1
4 944 105 149 01hose  1
5 944 105 157 04toothed belt  1
6 944 105 027 04tensioning roller  1
7 944 105 273 02roller  1
8 N 011 527 12washer A 10,5  2
9 900 075 111 08hexagon-head bolt M 10 X 35  1
10 N 022 149 2lock nut M 10  1
11 900 075 344 02hexagon-head bolt M 6 X 50  2
12 N 011 524 7washer A 6,4  11
13 999 072 005 09hexagon-head bolt M 6 X 12  11
14 999 703 164 40stopper  1
