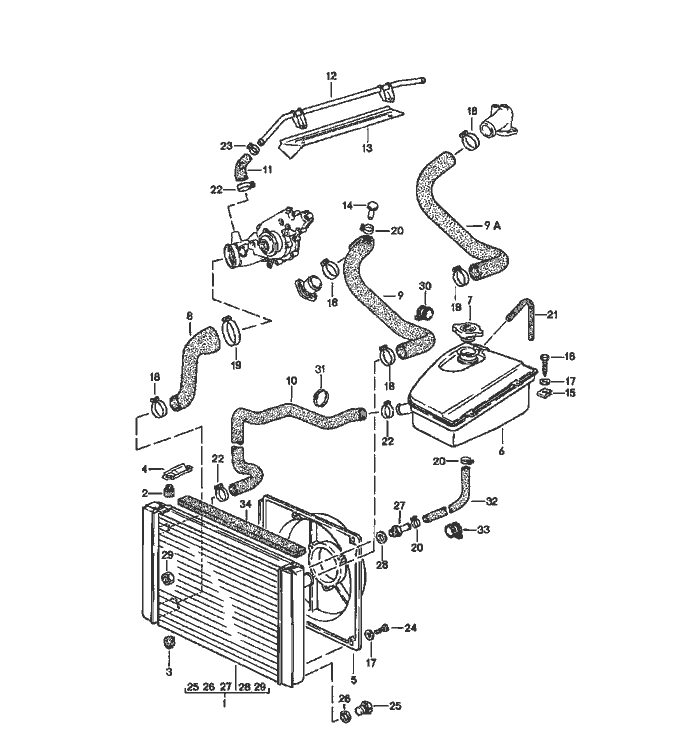

Porsche 944 Wasser Kühlung Teile

Wasser Kühlung


Pos__Part_Number__DescriptionRemarkQty.Model
  water cooling
1 944 106 031 01radiator  1
(1) 944 106 027 03radiator AUT. 1
2 944 106 153 00rubber mounting  2
3 944 106 155 00rubber mounting  2
4 944 106 151 02support  2
(5) 944 106 143 02airscoop  1
  air conditioner
6 944 106 125 06expansion tank  1
7 928 106 257 03catch  1
8 944 106 237 05water hose  1
8 944 106 237 05water hose  1 M 573
9 944 106 239 01water hose  1
  M >> 43D 3439   M44.02
  M >> 43D 5517   M44.04
9A 944 106 239 02water hose  1
  M 43D 3440 >>   M44.02
  M 43D 5518 >>   M44.04
10 944 106 245 01water hose  1
11 944 106 241 03water hose  1
12 944 106 243 02water tube  1
13 944 106 247 00heat shield AUT. 1
14 046 121 099stopper  1
15 477 955 461speed nut  2
16 N 090 172 1combination Schraube  2
  6,3 X 19
17 N 011 524 7washer  6
  A 6,4
18 999 512 499 00hose clamp  3
  32 -50

Pos__Part_Number__DescriptionRemarkQty.Model
19 999 512 317 00clip  1
  60 -80
20 999 512 554 00hose clamp  3
  12 -20
21 944 106 251 00water hose  1
22 999 512 252 02hose clamp  3
  23 -35
23 999 512 346 00hose clamp  1
  16 -25
24 900 187 111 02combination Schraube  4
  6,3 X 12
25 944 106 353 00Schraube plug  1
  M 10 X 1
26 944 106 354 00sealing ring  1
27 944 106 351 00connection piece  1
28 944 106 352 00sealing ring  1
29 944 106 355 00nut AUT. 2
30 999 511 130 02pipe clamp  1
  44/20
31 999 513 010 40tie-wrap  2
  9 X 140
32 944 106 249 01water hose  1
33 N 020 602 1pipe clamp  1
  B 15
34 944 556 837 00sealing rubber  1
