Porsche 944 Kraftstoff Tank Teile

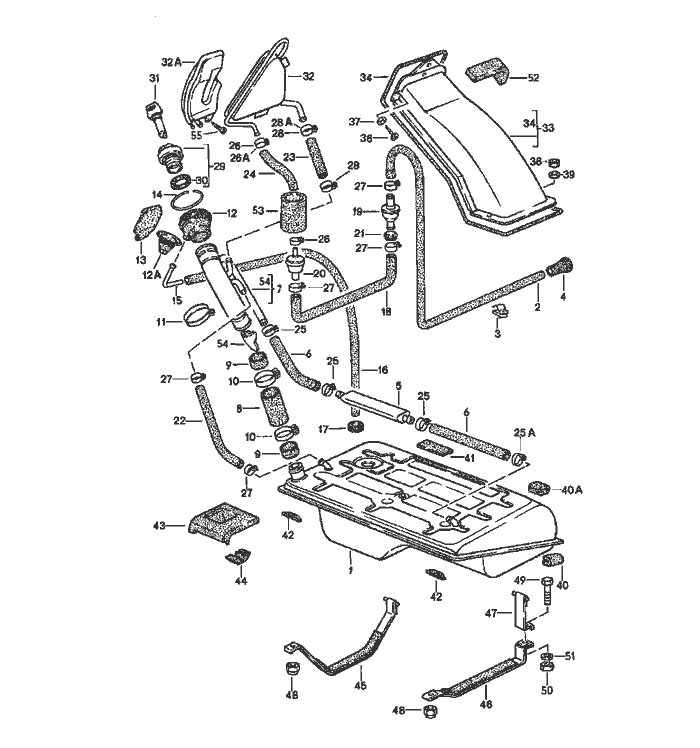

Kraftstoff Tank


Pos__Part_Number__DescriptionRemarkQty.Model
  fuel tank
1 477 201 021 Ffuel tank  1
5 477 201 035expansion tank  1
-N 020 363 1hose  *
  15 X 2,5
6 -running meter  2
7 931 201 049 01filler neck  1
8 N 901 235 01hose  1
  shorten
  30 MM
9 944 201 217 00hose  2
10 111 501 159 Bhose clamp  2
11 999 513 003 40tie-wrap  2
12 931 201 281 01sleeve  1
  F >>94EN4 50060
12 931 201 281 02sleeve  1
  F 94EN4 50061>>
12A 944 201 461 00grommet  1
13 928 201 057 02protective flap  1
14 900 906 045 03circlip  1
  B 105
15 477 201 283 Aconnection piece  1
16 477 201 393 Ahose  1
17 021 119 569rubber sleeve  1
18 944 201 449 00hose  1
19 928 201 083 02shut-off valve  1
20 810 201 186 Ableeder valve  1
21 111 971 911 Arubber sleeve  1
-N 020 378 1hose  *
  10 X 2,5

Pos__Part_Number__DescriptionRemarkQty.Model
22 -270 MM  1
-N 020 362 1hose  *
  12 X 2,5
23 -80 MM -83 1
(23) 999 181 354 40hose 841
-N 020 379 1hose  *
  6 X 2,5
24 -285 MM -83 1
(24) 944 201 453 01hose 841
25 N 024 125 2hose clamp  3
  A 9 X 19
25A N 023 565 3hose clamp  1
  A 9 X 21
26 N 024 528 1clip  2
  LC 8 -12
26A 999 512 160 02hose clamp 841
  9 X 13
27 N 023 570 2hose clamp  5
  A 9 X 15
28 N 023 569 2hose clamp  2
  AR 9 X 16
28A 999 512 198 02hose clamp 841
  9 X 17
29 944 201 061 01fuel tank cap  1
  without lock cylinder
30 944 201 553 00gasket  1
31 477 201 594lock cylinder  1
  with 1 key
  state lock number
31 477 201 594 Alock cylinder  1
  with 1 key
  state lock number
32 944 201 041 00expansion tank -83 1
32A 944 201 041 03expansion tank 841

Pos__Part_Number__DescriptionRemarkQty.Model
33 944 201 047 03cover   1
33 944 201 047 03cover   1
-000 043 202 08packing cord   *
34 -$ 4 MM   1
-000 043 202 08packing cord   *
34 -$ 6 MM   1
36 N 013 957 5tapping Schraube   5
  B 3,5 X 9,5
37 900 151 028 02washer   3
  4,3
38 N 011 005 14hexagon nut   2
  M 5
39 900 025 003 02washer   2
  A 5,3
40 481 201 647intermediate piece   2
40A 944 201 647 00intermediate piece   2
41 477 201 295 Bintermediate layer   4
42 477 201 295 Bintermediate layer   2
43 477 863 160 Agasket
44 477 863 162 Asound absorber   1
45 477 201 302restraining strap Right 1
46 477 201 311 Brestraining strap Left 1
47 477 201 395restraining strap Left 1
48 311 101 463hexagon nut   2
  M 8
49 N 010 335 5hexagon-head bolt   1
  M 8 X 35
50 900 910 022 09lock nut   1
  M 8
51 N 011 525 13washer   1
  A 8,4

Pos__Part_Number__DescriptionRemarkQty.Model
-000 043 205 05sound absorber  *
52 -100 MM  1
-999 181 046 40insulating hose  *
53 -60 MM  1
54 931 201 359 02flap  1
55 N 043 864 1Schraube 841
  BM 3 X 6
