Porsche 944 Slide-valve Gearbox Teile

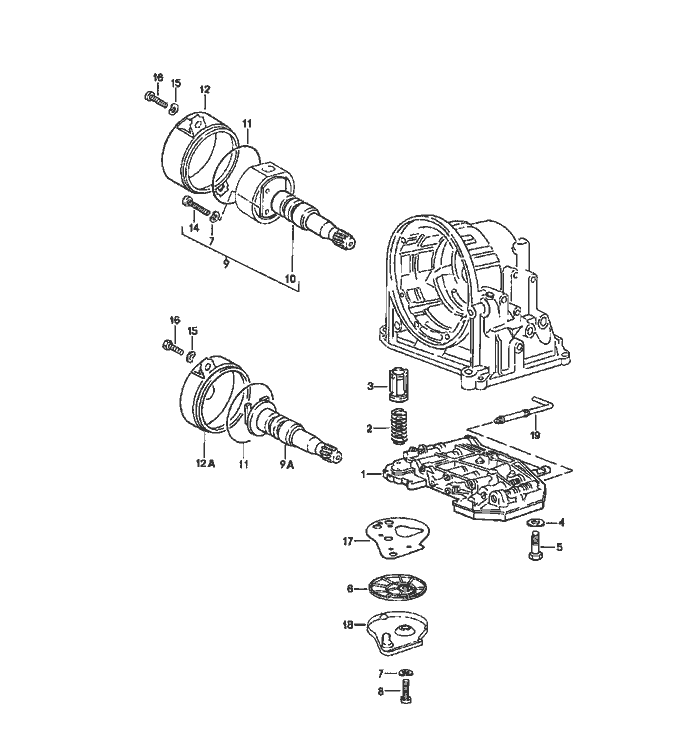

Slide Valve Gearbox


Pos__Part_Number__DescriptionRemarkQty.Model
  slide-valve gearbox
  regulator
  oil strainer
  automatic transmission
1 087 325 037 Cslide-valve gearbox  1 RCA RCB
2 003 325 417compression spring  1
3 003 325 405 Fpiston  1
4 N 012 226 5spring washer  11
  B 6
5 N 010 346 5hexagon-head bolt  11
  M 6 X 30
6 010 325 421 Aoil strainer  1
7 N 012 222 4spring washer  4
  B 5
8 900 014 004 02pan-head Schraube  2
  AM 5 X 15
9 087 325 041regulator  1 RH RCA
     RCB
  G >>RCB 30 03 3
9A 087 325 041 Bregulator  1 RCA RCB
     RCD
  G RCB 31 03 3>>
10 087 325 305governor shaft  1 RH RCA
     RCB
  G >>RCB 30 03 3
11 * 011 519 345round seal  1
12 089 325 371lid  1 RH RCA
     RCB
  G >>RCB 30 03 3
12A 089 325 371 Alid  1 RCA RCB
     RCD
  G RCB 31 03 3>>
14 N 014 153 1oval-head Schraube  2
  M 5 X 40
15 N 012 228 3spring washer  2
  B 8

Pos__Part_Number__DescriptionRemarkQty.Model
16 N 010 240 16hexagon-head bolt  2
  8 X 20
17 010 325 443gasket  1
18 010 325 429 Alid  1
19 010 325 277manual valve  1
