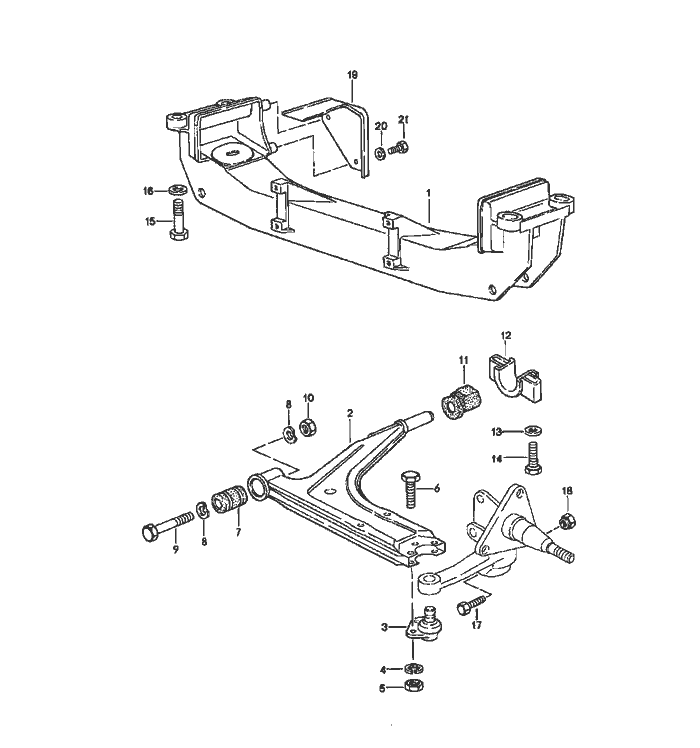

Porsche 944 Wishbone Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		wishbone
		cross member
1	944 341 103 06	cross member	Left Hand Drive		1
2	171 407 153 D	wishbone			2
3	171 407 365 G	ball joint			2
		$ 17 MM
4	N 042 001 1	lock ring			6
		A 7
5	N 011 007 7	hexagon nut			6
		M 7
6	N 040 204 3	hexagon-head bolt			6
		M 7 X 20
7	171 407 182 D	rubber mounting			2
8	900 025 009 02	washer			4
		A 13
9	900 082 039 02	hexagon-head bolt			2
		M 12 X 1,5 X 100
10	N 021 131 1	lock nut			2
		M 12 X 1,5
11	477 407 181 A	rubber mounting			2
12	477 407 169	clip			2
13	477 407 425	washer			4
14	N 040 321 1	hexagon-head bolt			4
		M 10 X 65
15	N 010 183 1	hexagon-head bolt			4
		M 12 X 75
16	999 025 074 02	washer			4
17	N 010 445 6	hexagon-head bolt			2
		M 10 X 45
18	N 021 130 2	lock nut			2
		M 10
19	944 341 107 01	heat protection plate	Left Hand Drive	-84	1
19	951 341 108 02	heat protection plate	Left Hand Drive	85	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
20	N	011 524 7	washer		2
			A 6
21	N	010 215 13	hexagon-head bolt		2
			M 6 X 15
