Porsche 944 Lenkung Rad Lenkung Column Teile

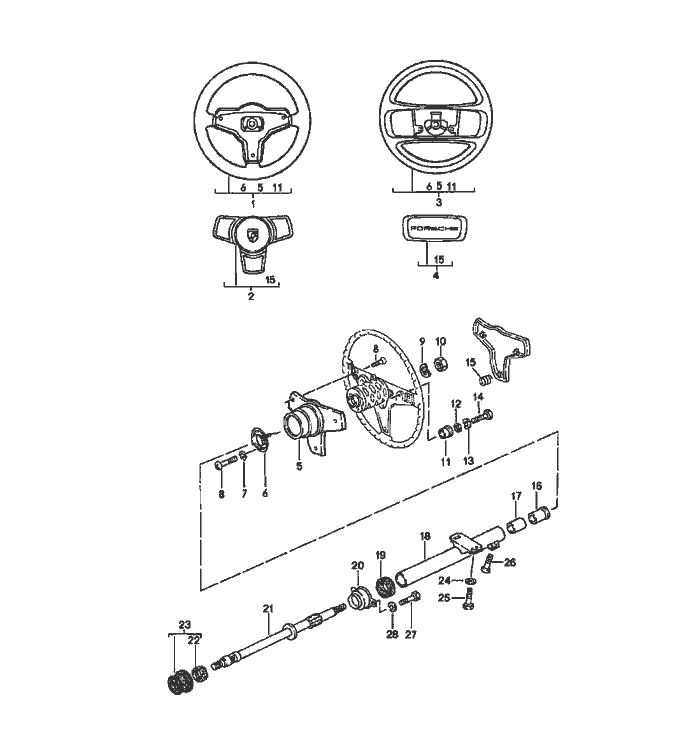

Lenkung Rad Lenkung Column


Pos__Part_Number__DescriptionRemarkQty.Model
  steering wheel steering column
1 944 347 084 01sports steering wheel leatherette $ 380 MM  1
 1DBblack
 4RBbrown
(1) 944 347 084 04sports steering wheel leather $ 380 MM  1 M 416
 1AJblack
 4RBbrown
1 944 347 084 03sports steering wheel leather $ 380 MM with elevated hub  1 M 018
 1DBblack
 4RBbrown
2 944 347 859 04padded cap  1
 1DBblack
 4RBbrown
3 944 347 084 02sports steering wheel leather $ 363 MM  1 M 431
 1AJblack
 4RBbrown
4 944 347 859 05padded cap  1 M 431
 1AJblack
 4RBbrown
5 944 347 057 00lining  1
 1DBblack
 4RBbrown

Pos__Part_Number__DescriptionRemarkQty.Model
(5) 944 347 857 00lining   1 M 431
 1DBblack
 4RBbrown
6 113 415 660 Aslip ring   1
7 N 012 131 2shake-proof washer   3
  J 3,7
8 113 415 869oval-head Schraube   6
  AM 3,5 X 10
9 N 012 238 5spring washer   1
  B 16
10 900 078 006 01hexagon nut   1
  M 16 X 1,5
11 321 419 779insulating bush   3
11 321 419 779 Ainsulating bush   3 M 431
12 900 025 002 02washer   3
  A 4,3
13 N 042 122 2shake-proof washer   3
  A 4,3
14 N 010 261 3hexagon-head bolt   3
  M 4 X 15
15 171 419 697spring   3
16 171 419 341support ring   1
17 171 419 549clamping sleeve   1
18 477 419 563 Bsteering column tube   1
19 411 417 613rubber mounting   1
20 411 417 605support ring   1
21 477 419 505 Jsteering column Left Hand Drive 1
(21) 478 419 505 Bsteering column Right Hand Drive 1
(21) 944 347 019 00steering column Left Hand Drive 1 M 657
22 113 415 511needle-roller bearing   1

Pos__Part_Number__DescriptionRemarkQty.Model
23 477 419 059needle sleeve   1
24 111 129 720washer A 8,4   2
25 411 417 549shear bolt   2
26 N 014 707 4pan-head Schraube M 8 X 16   1
27 N 010 215 13hexagon-head bolt M 6 X 15 Left Hand Drive 2
28 211 805 243spring washer   2
