Porsche 944 Hinter Achse Carrier Teile

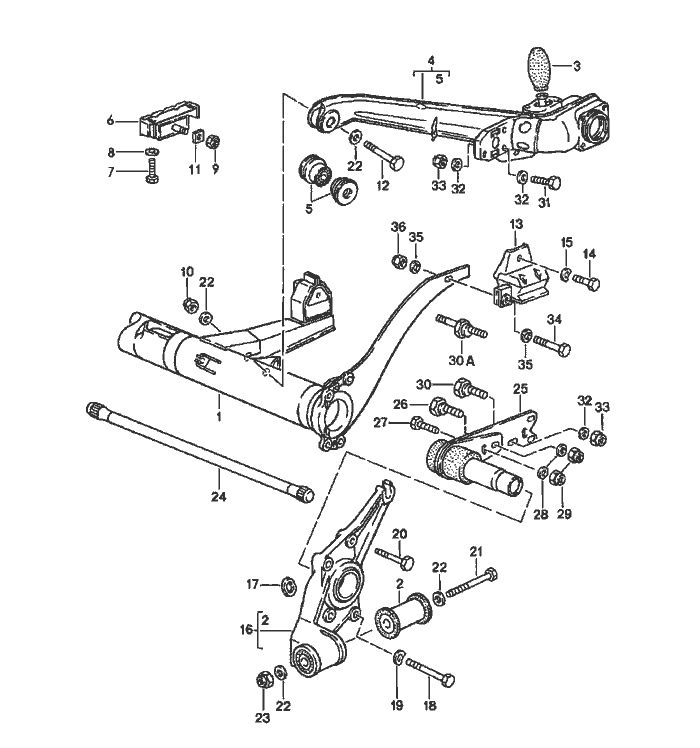

Pos	__Part_Number__	Description	Remark	Qty.	Model
		rear axle carrier
		rear axle link
(1)	477 500 053 F	rear axle carrier			1
2	477 501 069 A	rubber bush			2
3	311 501 191	rubber stop			2
4	944 331 021 00	rear axle link	Left		1
(4)	944 331 022 00	rear axle link	Right		1
5	477 501 541	silentbloc			4
6	477 501 089	mounting			2
7	900 075 043 02	hexagon-head bolt			4
		M 10 X 30
8	900 025 008 09	washer			4
		A 10,5
9	N 022 149 2	lock nut			2
		VM 10
10	N 021 131 1	lock nut			2
		VM 12 X 1,5
11	477 501 697	washer			2
12	N 010 190 4	hexagon-head bolt			2
		M 12 X 90
13	944 331 075 00	supporting mount	Left		1
(13)	944 331 076 00	supporting mount	Right		1
14	900 075 040 02	hexagon-head bolt			8
		M 10 X 20
15	N 012 230 6	spring washer			8
		B 10
16	944 331 059 00	bearing flange	Left		1
(16)	944 331 060 00	bearing flange	Right		1
17	477 501 667	washer			2
18	900 074 248 09	hexagon-head bolt			2
		M 10 X 65

Pos	__Part_Number__	Description	Remark	Qty.	Model
19	N 012 230 6	spring washer			8
		B 10
20	N 010 455 3	hexagon-head bolt			6
		M 10 X 55
21	900 082 059 02	hexagon-head bolt			2
		M 12 X 1,5 X 115
22	803 199 347	washer			8
23	N 022 141 4	lock nut			2
		VM 12 X 1,5
24	944 333 115 00	torsion bar	Left		1
		23,5 $
(24)	944 333 116 00	torsion bar	Right		1
		23,5 $
25	477 511 201	rear axle strut	Left		1
(25)	477 511 202	rear axle strut	Right		1
26	911 333 303 00	eccentric Schraube			2
27	911 333 305 00	hexagon-head bolt			2
28	911 333 307 00	washer			4
29	900 910 092 02	lock nut			4
		VM 16 X 1,5
30	477 511 519	camber eccentric			2
30A	477 511 515	camber eccentric			2
		only together with
		stabiliser
		$ 14 MM
31	N 010 138 1	hexagon-head bolt			4
		M 12 X 1,5 X 38
32	900 025 009 02	washer			8
		A 13
33	N 022 141 4	lock nut			4
		VM 12 X 1,5
34	900 075 029 09	hexagon-head bolt			2
		M 8 X 25

Pos	__Part_Number__	Description	Remark	Qty.	Model
35	900 025 007 02	washer			4
		A 8,4
36	900 910 022 09	lock nut			2
		VM 8
