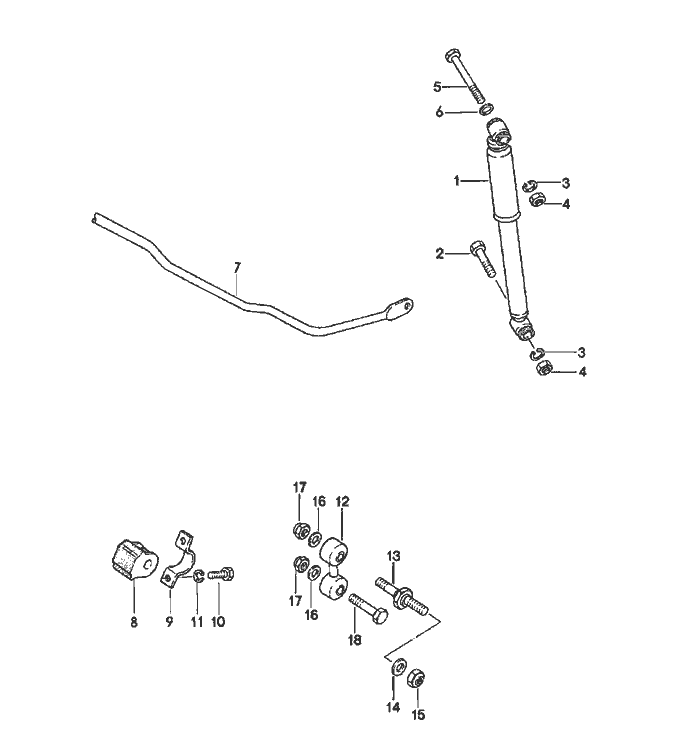

Porsche 944 Vibration Damper Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		vibration damper
		stabiliser
1	477 513 031 H	vibration damper		2
		-fichtel + sachs -
(1)	944 333 031 00	vibration damper		2	M 474
		-koni
2	N 010 156 3	hexagon-head bolt		2
		M 12 X 1,5 X 70
3	N 012 042 4	lock ring		4
		B 12
4	N 011 020 8	hexagon nut		4
		M 12 X 1,5
5	900 082 044 02	hexagon-head bolt		2
		M 12 X 1,5 X 125
6	043 101 129	washer		2
		12,2 X 22
		stabiliser
7	477 511 411 A	stabiliser		1
		$ 14 MM
8	477 411 313 F	rubber mounting		2
		$ 14 MM
9	113 411 333	retaining bow		2
10	900 075 085 02	hexagon-head bolt		4
		M 8 X 20
11	900 027 015 02	lock ring		4
		B 8
12	477 511 051 A	stabiliser mounting		2
13	477 511 515	camber eccentric		2
14	900 025 009 02	washer		2
		A 13
15	N 022 141 4	lock nut		2
		VM 12 X 1,5
16	900 025 008 09	washer		4
		A 10,5

Pos	__Part_Number__	Description	Remark	Qty.	Model
17	N	022 149 2	lock nut		4
			VM 10
18	N	010 452 4	hexagon-head bolt		2
			M 10 X 52
