Porsche 944 Disc Bremse Teile

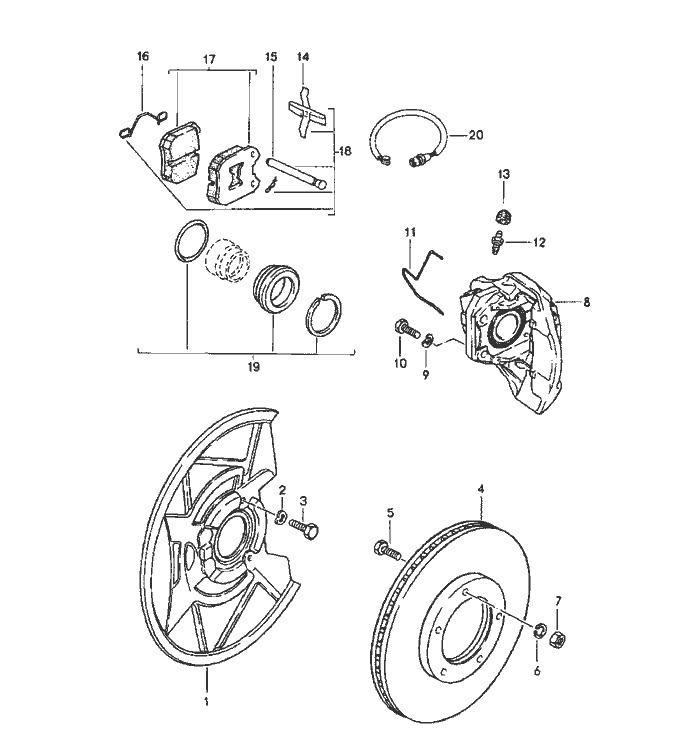

Disc Bremse


Pos__Part_Number__DescriptionRemarkQty.Model
  disc brake
  front axle
1 944 351 085 00cover plate   2
2 N 012 234 5spring washer   6
  B 7
3 N 010 226 2hexagon-head bolt   6
  M 7 X 10
4 477 405 083 Abrake disc   2
5 900 075 079 02hexagon-head bolt   10
  M 8 X 22
6 N 012 241 1spring washer   10
  B 8
7 900 076 025 02hexagon nut   10
  M 8
8 477 615 109floating calliper Left-83 1
(8) 477 615 110floating calliper Right-83 1
(8) 944 351 429 00floating calliper Left841
(8) 944 351 430 00floating calliper Right841
9 900 028 014 02spring washer   4
  B 12
10 N 040 108 1hexagon-head bolt   4
  M 12 X 1,5 X 40
11 431 615 169guide spring   2
12 928 351 945 00ventilation valve  -83 2
(12) 944 351 957 00ventilation valve  842
13 211 611 483dust boot  -83 2
(13) 944 351 959 00dust boot  842
14 * 928 351 935 00expanding spring   2
15 * 928 351 936 00retaining pin   4
16 * 477 615 112retaining spring  -83 2
(16) 928 351 955 00safety seal  842

Pos__Part_Number__DescriptionRemarkQty.Model
17 944 351 951 02brake pad repair set  1
  without asbestos
18 944 351 952 01mounting parts  1
19 928 351 941 00gasket set  1
20 944 612 211 00warning contact  2
-944 341 705 00cable holder  1
-944 612 635 00clip  4
