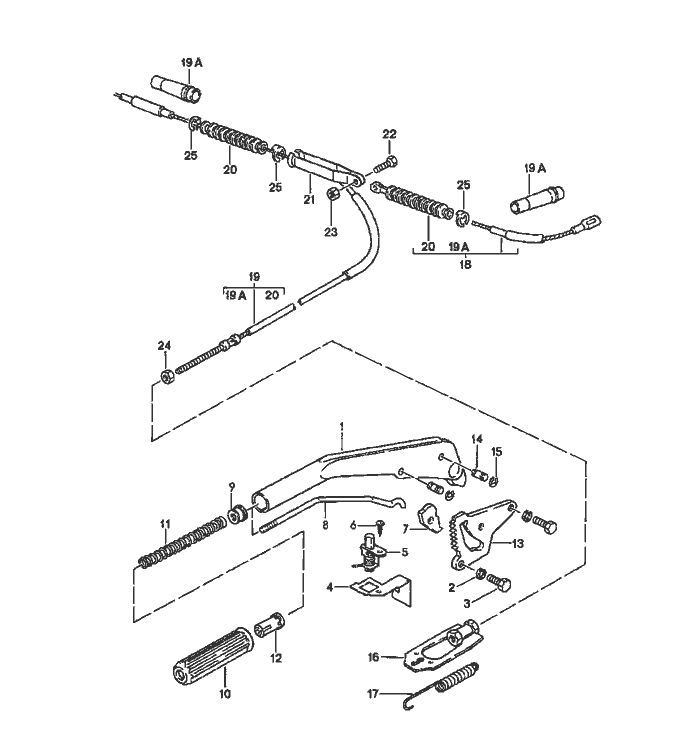

Porsche 944 Parking-brake Lever Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		parking-brake lever
(1)	944 424 052 00	parking-brake lever			1
2	900 027 015 02	lock ring			2
		B 8
3	N 010 239 11	hexagon-head bolt			2
		M 8 X 18
4	477 711 317	support	Left Hand Drive		1
5	968 613 601 00	contact switch			1
6	N 013 957 5	tapping Schraube			1
		B 3,5 X 9,5
7	823 711 321	pawl			1
8	481 711 325	ratchet rod			1
9	481 711 327	spring sleeve			1
10	839 711 327	grip handle			1
	041	black
11	191 711 329	pressure spring			1
12	113 711 333 B	push button			1
	01C	black
	043	brown
(13)	944 424 252 00	tooth sector			1
14	251 711 341 A	bearing pin		-83	2
(14)	944 424 352 00	bearing pin		84	1
14	251 711 341 A	bearing pin		84	1
-	900 910 022 09	lock nut		84	1
		VF M 8
15	900 116 005 02	lock washer			4
16	477 711 973	turnbuckle			1
17	477 711 975	return spring			1

Pos	__Part_Number__	Description	Remark	Qty.	Model
18	477 609 719 C	parking-brake cable 925 MM		1
19	477 609 720 C	parking-brake cable 1975 MM		1
19A	477 609 723	guide tube		2
20	477 609 715	sealing sleeve		2
-	N 020 906 3	tie-wrap 6,5 X 450		2
21	477 711 965	compensating bow		1
22	900 378 030 09	hexagon-head bolt M 6 X 20		1
23	900 910 012 02	lock nut M 6		1
24	900 076 010 02	hexagon nut M 6		1
25	999 166 027 02	lock 8		3
-	477 711 979	retaining strap		2
-	N 013 530 3	rivet		2
-	N 013 510 1	compression rivet		2
