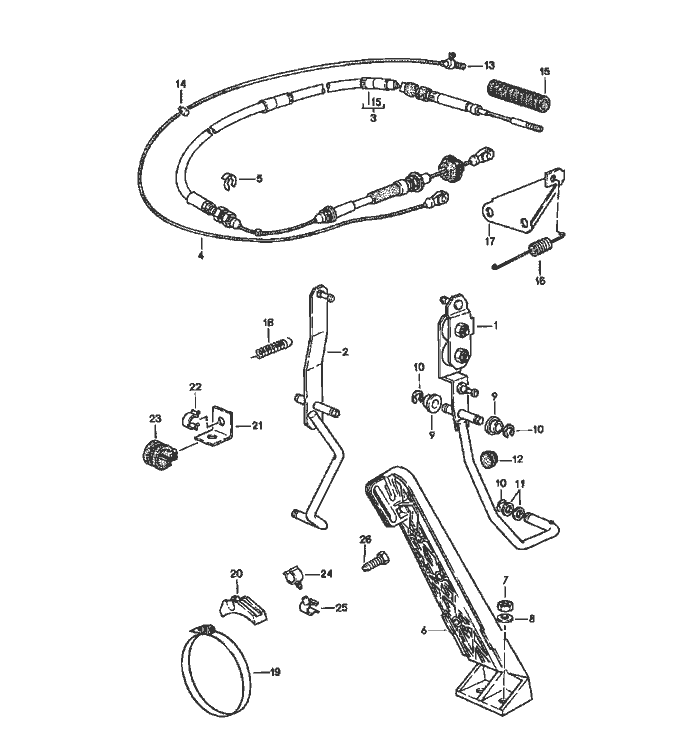

Porsche 944 Accelerator Pedal Teile

Accelerator Pedal


Pos__Part_Number__DescriptionRemarkQty.Model
  accelerator pedal
  accelerator cable
  for cars with
  automatic transmission
1 944 423 033 00accelerator control Left Hand Drive 1
3 944 423 071 03accelerator cable Left Hand Drive 1
4 944 423 973 02cable Left Hand Drive 1
5 N 012 323 1circlip   1
6 827 723 511 Aaccelerator pedal   1
7 900 076 010 02hexagon nut   2
  M 6
8 803 817 121washer   2
9 477 721 543bearing sleeve   2
10 N 012 436 2lock washer   3
11 900 025 038 40washer   2
12 999 703 183 40buffer   1
13 477 723 601nipple   1
14 477 723 611nipple   1
15 311 713 269 Asealing sleeve   1
16 477 723 563 Ctension spring   1
17 944 423 141 00support   1
18 944 423 833 00spring   1
19 999 512 350 02hose clamp   1
20 477 723 567support   1
21 477 971 881 Aretaining bracket   1
22 477 971 851cable clip   1
23 999 511 116 02clamp   X
24 999 591 573 40hose holder   3
25 999 591 572 40hose holder   3

Pos__Part_Number__DescriptionRemarkQty.Model
26 944 423 731 00adjusting Schraube  1
