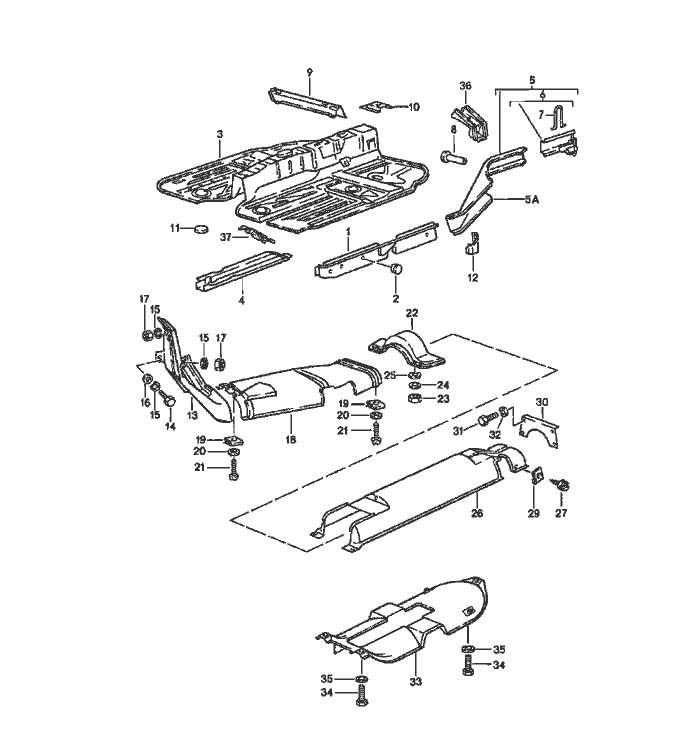

Porsche 944 Side Member Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		side member
		heat shield
1	477 803 103 A	side member	Left		1
		centre
(1)	478 803 104 B	side member	Right		1
		centre
2	999 703 119 40	stopper			2
		side member
(2)	803 803 583	drain bush			2
(2)	803 803 583 A	cap			10
3	944 501 501 00	floor section			1
		centre
4	477 803 283	side member			2
		floor section
		centre
5	477 803 105 A	side member	Left		1
		use also:
		477.803.145
(5)	477 803 106 A	side member	Right		1
		use also:
		477.803.145
6	477 803 125 A	end piece	Left		1
(6)	477 803 126	end piece	Right		1
7	477 803 129	retaining bow			2
8	477 803 145	bush			2
9	477 803 231	cross member	Vorder Left		1
		front seat
(9)	477 803 232	cross member	Vorder Right		1
		front seat
10	477 803 241	bracket	Hinter		4
		front seat
11	411 803 595	lid			2
		136 MM $
12	477 803 871 A	jacking point	Left		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
(12)	477 803 872 A	jacking point	Right		1
13	477 809 214 A	cover plate			1
14	999 072 005 09	hexagon-head bolt			1
		M 6 X 12
15	N 012 006 4	lock ring			3
		B 6
16	N 011 524 7	washer			1
		A 6,4
17	900 076 010 02	hexagon nut			2
		M 6
18	477 803 387 B	heat shield			1
19	N 015 458 1	speed nut			4
		B 4,8 X 20
20	900 151 027 02	washer			4
		B 5,3
21	N 013 968 7	tapping Schraube			4
		B 4,8 X 13
22	477 803 253	transverse strut			1
23	N 011 008 8	hexagon nut			4
		M 8
24	N 011 525 13	washer			4
		A 8,4
25	900 027 015 02	lock ring			4
		B 8
26	951 504 869 00	heat shield			1
		upper
27	N 090 239 1	combination Schraube			2
		B 4,8 X 13
29	999 591 485 02	speed nut			2
		B 4,8 X 13
30	477 803 291	transverse strut			2
31	N 010 237 6	hexagon-head bolt			8
		M 8 X 12

Pos	__Part_Number__	Description	Remark	Qty.	Model
32	N 012 229 3	spring washer A 8			8
33	944 503 139 00	heat shield			1
34	999 072 005 09	hexagon-head bolt M 6 X 12			4
35	900 151 029 02	washer 6,4			4
36	944 201 049 00	cover			1
37	477 803 729	foot support	Left Hand Drive		1
