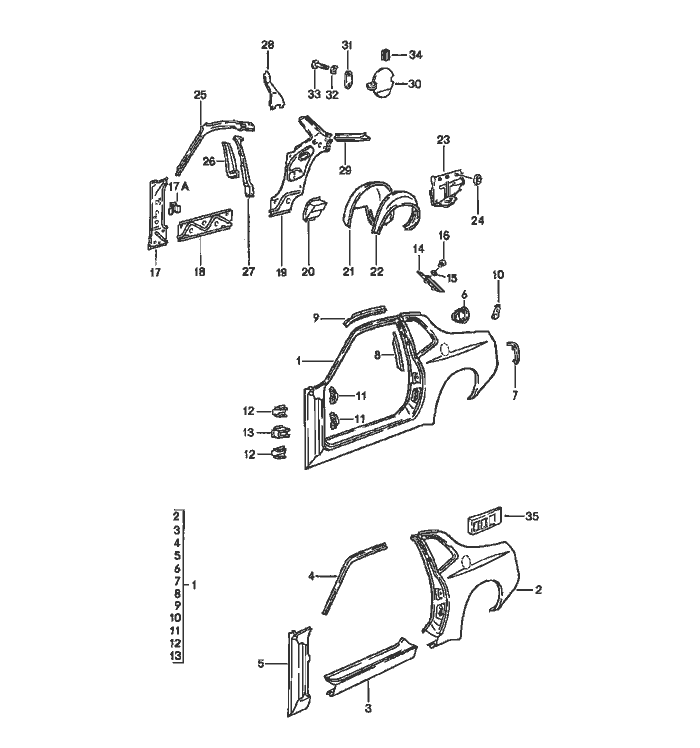

Porsche 944 Side Section Teile
Pos
__Part_Number__
Description
Remark
Qty.
Model
side section
(1)
931 503 601 03
side section
Left
1
(1)
931 503 602 03
side section
Right
1
(2)
931 503 901 01
side section
Left
1
(2)
931 503 902 01
side section
Right
1
3
944 503 611 00
door sill
Left
1
(3)
944 503 612 00
door sill
Right
1
4
931 503 517 00
roof frame
Left
1
(4)
931 503 518 00
roof frame
Right
1
5
931 503 411 00
hinge pillar
Left
1
(5)
931 503 412 00
hinge pillar
Right
1
6
944 503 068 00
pot
1
tank filler neck
7
477 809 375 A
bracket for light
Left
1
(7)
477 809 376 A
bracket for light
Right
1
8
477 809 445
reinforcement
Left
1
(8)
477 809 446
reinforcement
Right
1
9
477 809 585
filler plate
Left
1
(9)
477 809 586
filler plate
Right
1
10
477 809 617
retaining bracket
Left
1
lid
boot floor lining
(10)
477 809 618
retaining bracket
Right
1
11
477 809 653
mounting plate
4
12
477 809 655
hinge reinforcement
4
13
477 809 625
reinforcement
2
14
944 503 097 00
reinforcement
Left
1
(14)
944 503 098 00
reinforcement
Right
1
Pos
__Part_Number__
Description
Remark
Qty.
Model
15
928 504 355 02
gasket
4
16
999 015 005 07
half-round Schraube
4
17
477 809 393 A
hinge pillar
Left
1
inner
use also:
/LL
84-
POS.17A
(17)
477 809 394 A
hinge pillar
Right
1
17A
944 502 373 00
mounting
84
1
switch
rear lid release
18
477 809 433
separator
2
19
944 502 901 00
side section
Left
-83
1
inner
19
944 502 901 01
side section
Left
84
1
inner
(19)
944 502 902 00
side section
Right
-83
1
inner
with
expansion tank
(19)
944 502 902 01
side section
Right
84
1
inner
20
931 502 387 01
corner plate
Left
1
(20)
931 502 388 01
corner plate
Right
1
21
944 501 043 00
wheel housing
Left
1
inner
(21)
944 501 044 00
wheel housing
Right
1
22
931 502 411 01
wheel housing
Left
1
outer
(22)
931 502 412 01
wheel housing
Right
1
23
944 502 025 00
side section
Hinter Left
1
inner
(23)
944 502 026 00
side section
Right
1
24
803 803 583
drain bush
X
(24)
021 119 569
rubber sleeve
X
M 650
Pos
__Part_Number__
Description
Remark
Qty.
Model
25
477 809 037
separator
Left
1
(25)
477 809 037
separator
Left
1
M 650
(25)
477 809 038
separator
Right
1
(25)
A 477 809 038
separator
Right
1
M 650
26
477 809 397
centre pillar
Left
1
inner
(26)
477 809 398
centre pillar
Right
1
27
944 502 049 00
reinforcement
Left
1
inner
(27)
944 502 050 00
reinforcement
Right
1
28
477 809 427
closing element
Left
1
(28)
477 809 428
closing element
Right
1
29
944 502 439 00
reinforcement
Left
1
(29)
477 809 440
reinforcement
Right
1
30
931 504 095 00
flap
1
F >>94EN4 66276
30
944 504 095 00
flap
1
F 94EN4 66277>>
31
477 853 403
desk pad
X
32
N 012 222 4
spring washer
2
A 5
33
900 146 003 02
oval-head Schraube
2
M5 X 10
34
931 504 397 00
stop
1
rubber
F >>94EN4 66276
34
944 504 397 00
stop
1
F 94EN4 66277>>
35
944 555 275 00
filler piece
Left
-83
1
(35)
944 555 275 01
filler piece
Left
84
1
(35)
944 555 276 00
filler piece
Right
1
