Porsche 944 Getriebe Carrier Teile

Getriebe Carrier

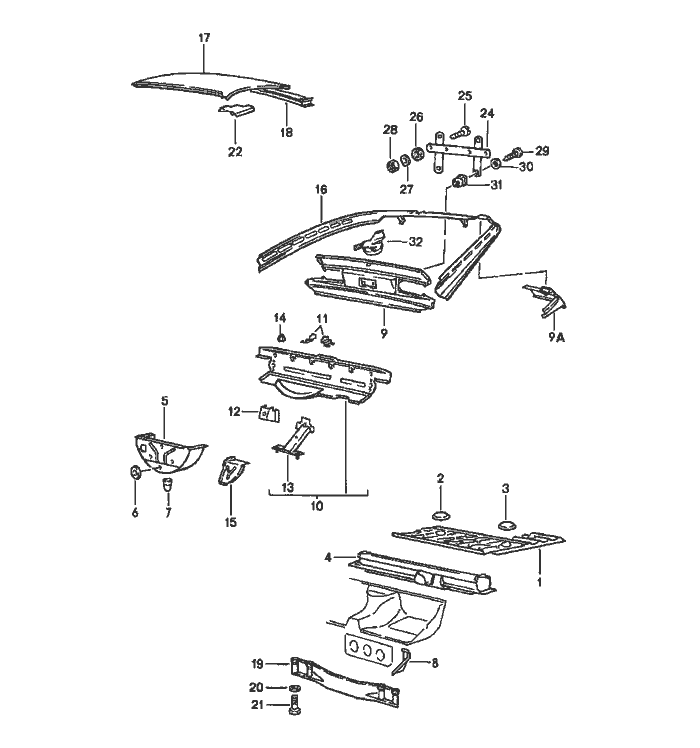

Pos__Part_Number__DescriptionRemarkQty.Model
  transmission carrier
  boot floor plate
  roof
1 944 501 075 00boot floor plate   1
2 477 803 581lid   1
3 411 803 595lid   1
  136 MM $
4 944 501 073 00transmission carrier   1
5 477 813 131spare-wheel well Vorder 1
6 803 803 583drain bush   3
7 111 701 309rubber sleeve   1
8 477 813 145 Bcorner panel Left 1
(8) 477 813 146 Bcorner panel Right 1
9 944 503 037 01end plate   1
9A 477 813 345 Areinforcement Left 1
(9A) A 477 813 346 Areinforcement Right 1
(9A) 944 502 346 01reinforcement Right 1
10 944 503 901 01end plate   1
  use also:
  cap   1
  999.703.173.40
11 477 813 169fastening angle Left 1
  scissors type jack
(11) 477 813 170fastening angle Right 1
  scissors type jack
12 477 813 165support   1
13 944 502 091 00support   1
  muffler
14 999 703 179 40stopper Hinter 1
15 477 813 309corner panel Left 1
(15) 944 502 210 00corner panel Right 1

Pos__Part_Number__DescriptionRemarkQty.Model
-951 512 447 00reinforcement plate   2
16 944 502 035 02lock carrier Hinter 1
(17) A 944 503 912 01roof  -83 1 M 650
(17) 944 503 912 01roof  -83 1 M 650
(17) A 944 502 031 01roof  841 M 650
(17) 944 503 912 00roof  841 M 650
17 A 477 817 111 Broof   1
17 944 503 912 02roof   1
18 477 817 171cross member Hinter-83 1
18 477 817 171 Aroof frame Hinter841
19 477 813 285transverse strut   1
  seat well
20 900 074 181 02Schraube   4
  M 10 X 95
21 900 025 008 09washer   4
  10,5
22 477 817 033reinforcement Vorder Left 1
(22) 477 817 034reinforcement Vorder Right 1
-N 015 430 1speed nut   2
  for
  support
  number plate
24 928 701 050 03support H)  1 (USA) (J) (C
  number plate
25 N 014 143 1oval-head Schraube   2
  AM 6 X 22
(25) N 100 457 01countersunk-head Schraube   2 (USA)(J)(CH)
  M 5 X 25
26 803 011 243rubber washer   2
27 900 151 027 02washer   2 (USA)(J)(CH)
  A 5,3

Pos__Part_Number__DescriptionRemarkQty.Model
28 900 910 009 02lock nut M 5  2 (USA)(J)(CH)
29 900 143 134 00tapping Schraube BZ 4,2 X 9,5  4 (USA)(J)(CH)
30 N 011 522 8washer 4,3  4 (USA)(J)(CH)
31 999 591 498 40special nut  4 (USA)(J)(CH)
32 944 501 207 01retaining bracket  1
