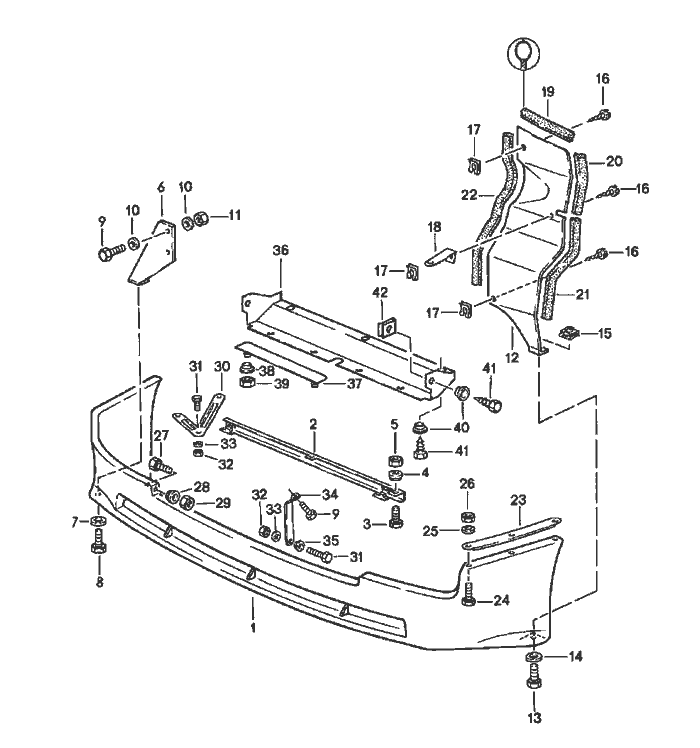

Porsche 944 Vorder Spoiler Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		front spoiler
(1)	931 505 371 04	front spoiler		-84	1
		prime coated
(1)	931 505 371 04	front spoiler		85	1
2	931 501 051 00	attachment strip			1
3	N 010 215 13	hexagon-head bolt			3
		M6 X 12
4	937 503 255 00	spacer			3
5	900 910 010 09	lock nut			3
		M 6
6	931 505 032 00	bracket	Right		1
7	999 217 013 00	hexagon-head bolt			1
		M6 X 12
8	937 503 255 00	spacer			1
9	999 072 005 09	hexagon-head bolt			2
		M6 X 12
10	N 011 524 7	washer			4
		A 6,4
11	900 910 010 09	lock nut			2
		M 6
12	944 503 321 01	cover	Left		1
13	999 217 014 00	hexagon-head bolt			1
		M6 X 16
14	N 011 666 7	washer			1
		A 6,4
15	999 507 335 02	nut			1
		M 6
16	N 090 172 1	combination Schraube			3
		B6,3 X 19
17	999 507 003 02	speed nut			3
		B6,3 X 17
18	944 503 419 00	retaining bracket			1
19	944 025 115 00	sealing rubber			1

Pos	__Part_Number__	Description	Remark	Qty.	Model
20	944 025 115 00	sealing rubber		1
21	944 025 115 00	sealing rubber		1
22	944 025 115 00	sealing rubber		1
23	944 503 513 00	attachment strip		2
24	N 010 215 13	hexagon-head bolt		6
		M6 X 15
25	N 011 524 7	washer		6
		A 6,4
26	900 910 010 09	lock nut		6
		M 6
27	N 010 215 13	hexagon-head bolt		2
		M6 X 15
28	937 503 255 00	spacer		2
29	900 910 010 09	lock nut		2
		M 6
30	944 503 514 00	support		1
		F 94DN4 63711>>
31	N 010 215 13	hexagon-head bolt		1
		M 6 X 15
32	900 910 010 09	lock nut		1
		M 6
33	N 011 524 7	washer		1
		A 6,4
34	944 505 179 00	retaining bracket		1
35	944 503 255 00	spacer		1
36	944 575 921 00	air duct		1
37	944 505 055 00	attachment strip		2
38	928 503 255 00	spacer		4
39	900 910 010 09	lock nut		4
		M 6
40	937 503 255 01	spacer		5

Pos	__Part_Number__	Description	Remark	Qty.	Model
41	N 010 215 13	hexagon-head bolt		5
		M 6 X 15
42	999 507 246 02	speed nut		2
		M 6
