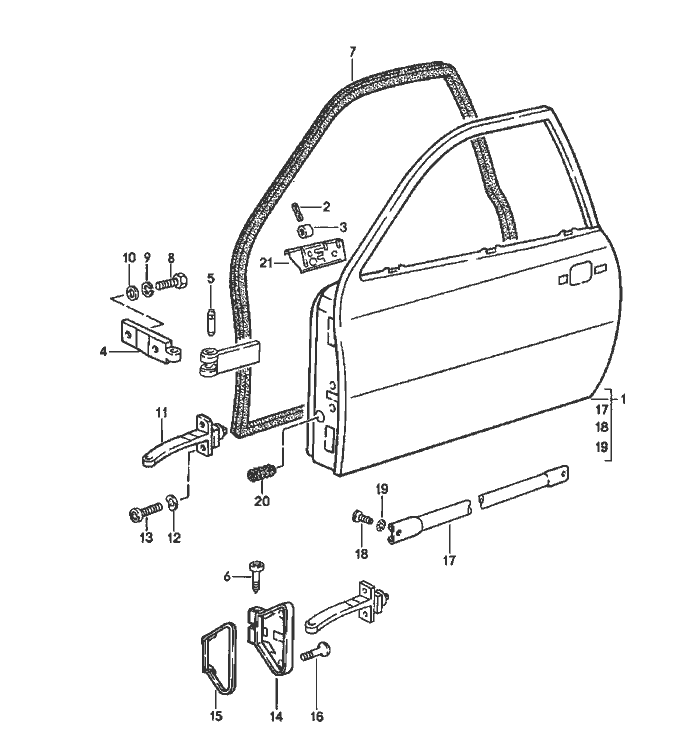

Porsche 944 Door Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		door
1	944 531 005 01	door in white	Left		1
		prepared for
		door mirror
(1)	478 831 052 R	door in white	Right		1
		prepared for
		door mirror
(1)	944 531 006 02	door in white	Right		1
		not prepared for
		door mirror
2	N 013 295 1	tensioning sleeve			2
3	928 531 235 03	threaded piece			2
4	171 831 403	hinge half			4
5	321 831 421	hinge pin			4
6	928 537 419 03	pan-head Schraube			2
7	944 537 091 00	door seal	Left		1
(7)	944 537 092 00	door seal	Right		1
8	900 119 052 02	pan-head Schraube			8
		M 8 X 15
9	900 027 015 02	lock ring			8
		B 8
10	823 711 815	washer			8
11	944 537 609 00	door support			2
11	944 537 609 00	door support			2
12	N 011 524 7	washer			4
		B 6
13	900 067 008 02	pan-head Schraube			4
		M 6 X 12
14	928 537 417 02	bearing bracket	Left		1
(14)	928 537 418 02	bearing bracket	Right		1
15	928 537 425 02	desk pad	Left		1
		bearing bracket

Pos	__Part_Number__	Description	Remark	Qty.	Model
(15)	928 537 426 02	desk pad bearing bracket	Right		1
16	928 537 459 02	oval-head Schraube M 6 X 20			4
17	477 831 155	reinforcement			2	M 190
18	999 147 006 02	oval-head Schraube M 8 X 16			4	M 190
19	N 012 133 1	shake-proof washer V 8,4			4	M 190
20	477 971 910	bellows			2
21	477 831 139 C	reinforcement door mirror	Left		1
(21)	477 831 140 C	reinforcement door mirror	Right		1
