Porsche 944 Installation Teile Teile

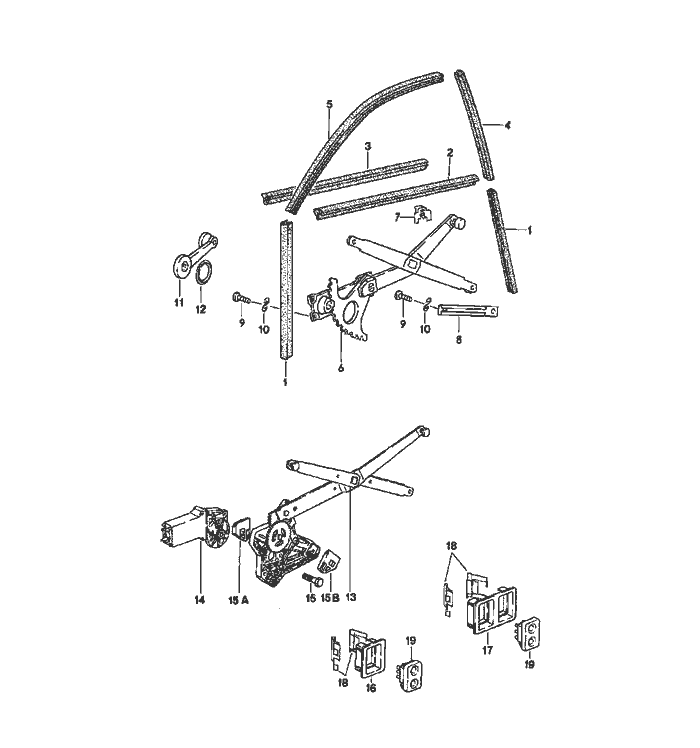

Pos	__Part_Number__	Description	Remark	Qty.	Model
		installation parts
		door window glass
		power windows
1	477 837 385	window guide			4
2	477 837 469 A	sealing strip	Left		1
		outer
(2)	477 837 470 A	sealing strip	Right		1
		outer
3	477 837 471 A	seal			2
		inner
4	477 837 479 A	window guide			2
5	477 837 493 A	window guide	Left		1
(5)	477 837 494 A	window guide	Right		1
13	477 837 391 C	cross-arm	Left		1
		power window
(13)	477 837 392 C	cross-arm	Right		1
		power window
14	477 959 123 A	engine and transmission	Left		1
(14)	477 959 124 A	engine and transmission	Right		1
15	N 014 228 4	countersunk-head Schraube			6
		AM 6 X 12
15A	477 837 397	stop	Left		1
		upper
15B	477 837 398	stop	Right		1
15A	477 837 397	stop	Right		1
		lower
15B	477 837 398	stop	Left		1
16	477 867 185 A	mounting piece			1
	1DB	black
	4RB	brown
17	477 867 187 A	mounting piece			1
	1DB	black

Pos	__Part_Number__	Description	Remark	Qty.	Model
	4RB	brown
18	477 867 189	spring clamp			4
19	477 959 622	tip switch			3
	01C	black
	89S	brown
		wiring harness for power window
-	477 971 160 A	wiring harness dashboard	Left Hand Drive	-83	1
-	944 612 031 00	wiring harness dashboard	Left Hand Drive	84	1
-	477 971 161	wiring harness dashboard			1
-	477 971 162	wiring harness passenger's door			1
-	321 919 505	relay			1
-	N 017 121 5	safety fuse 25 A			1
