Porsche 944 Sound Absorber Teile

Sound Absorber

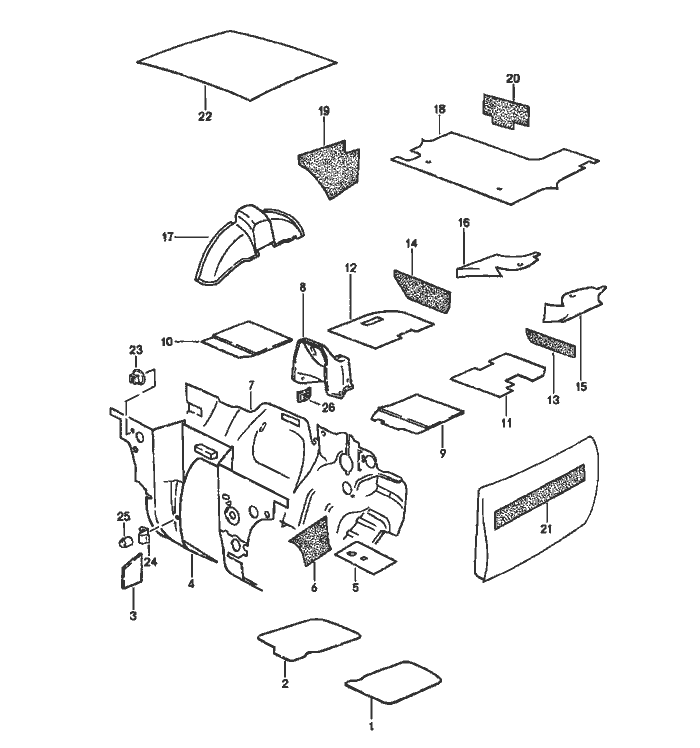

Pos__Part_Number__DescriptionRemarkQty.Model
  sound absorber
1 477 863 771sound absorber Left1
  engine compartment
2 477 863 772sound absorber Right1
3 477 863 871heat protection Right1
  side member
4 944 556 089 00insulation Left Hand Drive1
5 477 863 849insulation Left1
6 477 863 837sound absorber /L -83 1
(6) 477 863 838sound absorber /R -83 1
  side section
6 944 556 083 00sound absorber /LL/L84-1
(6) 944 556 084 00sound absorber /LL/R84-1
  side section
7 477 863 855 Finsulation  1
  firewall
8 477 863 667 Asound absorber Vorder1
9 477 863 775sound absorber Vorder1
  floor  1
10 477 863 776sound absorber Left Hand Drive \/ Right Side1
11 477 863 773sound absorber Hinter Left1
  floor
12 477 863 774sound absorber Right1
13 944 556 085 00sound absorber Left1
(13) 944 556 086 00sound absorber Right1
  cross member
(14) 477 863 845 Asound absorber Left1
14 477 863 846 Asound absorber Right1
  heel plate
15 944 556 777 01sound absorber Left1
16 944 556 778 01sound absorber Right1

Pos__Part_Number__DescriptionRemarkQty.Model
(17) 944 556 885 00sound absorber Left 1
17 944 556 886 00sound absorber wheel housing Right 1
18 944 556 079 00sound absorber boot floor plate   1
(19) 931 556 865 00sound absorber side section Left 1
  upper
(19) 931 556 867 00sound absorber side section lower Left 1
(19) 931 556 866 00sound absorber side section Right 1
  upper
(19) 931 556 868 00sound absorber side section lower Right 1
20 477 863 867insulation spare-wheel well   1 1
21 993 556 521 00insulation door   2
22 944 556 609 00sound absorber roof   1
23 999 049 002 40push button   13
24 944 556 849 00clip   6
25 999 049 001 40plastic nut   6
26 N 900 661 01clamping washer   5
