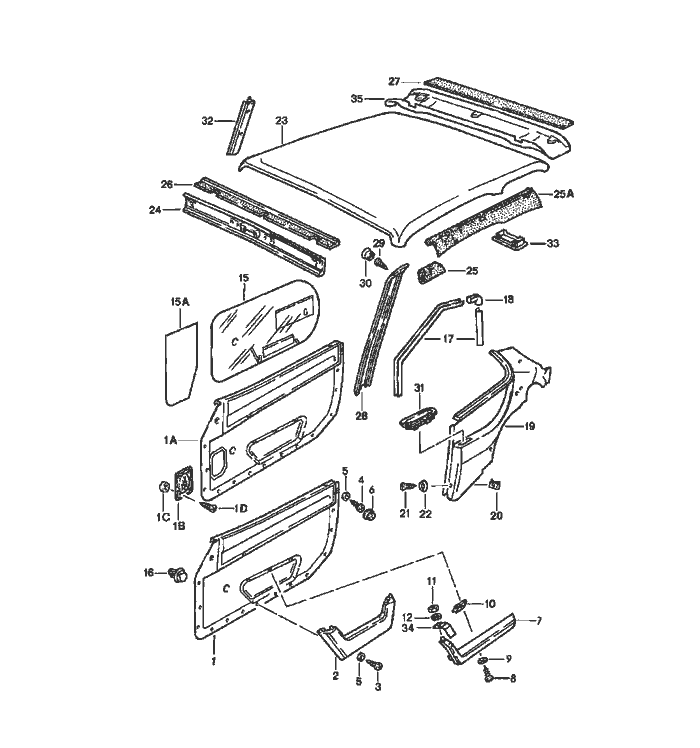

Porsche 944 Door Trim Panel Rooflining Teile

Door Trim Panel Rooflining


Pos__Part_Number__DescriptionRemarkQty.Model
  door trim panel rooflining
(1) 477 867 011 Ldoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Left Side1
 DF9black
 DG1brown
 DG2beige/brown
(1) 477 867 012 Ldoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Right Side1
 DF9black
 DG1brown
 DG2beige/brown
(1) 477 867 011 Ldoor trim panel leatherette/ checker board velour Left Hand Drive \/ Left Side1
 FE5black/ grey/black
 FE6brown/ beige/brown
(1) 477 867 012 Ldoor trim panel leatherette/ checker board velour Left Hand Drive \/ Right Side1
 FE5black/ grey/black
 FE6brown/ beige/brown
(1) 477 867 011 Ldoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Left Side1
 JS3grey-beige F 94DN4 50654>>94DN4 52325

Pos__Part_Number__DescriptionRemarkQty.Model
(1) 477 867 012 Ldoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Right Side1
 JS3grey-beige F 94DN4 50654>>94DN4 52325
(1A) 477 867 011 Rdoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Left Side1
 DG1brown F >>94DN4 56824
 JS3brown/grey-beige F >>94DN4 56824
 KZ8brown F 94DN4 56825>>
 KZ9brown/grey-beige F 94DN4 56825>>
1A 477 867 012 Rdoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Right Side1
 DG1brown F >>94DN4 56824
 JS3brown/grey-beige F >>94DN4 56824
 KZ8brown F 94DN4 56825>>
 KZ9brown/grey-beige F 94DN4 56825>>
(1A) 477 867 011 Rdoor trim panel leatherette/ checker board velour Left Hand Drive \/ Left Side1
 JS1brown/ brown-grey
1A 477 867 012 Rdoor trim panel leatherette/ checker board velour Left Hand Drive \/ Right Side1

Pos__Part_Number__DescriptionRemarkQty.Model
 JS1brown/ brown-grey
(1A) 477 867 011 Rdoor trim panel leatherette/ pin stripe velour Left Hand Drive \/ Left Side1
 JS5brown/ brown-beige
 JS2brown/ grey-beige-white
1A 477 867 012 Rdoor trim panel leatherette/ pin stripe velour Left Hand Drive \/ Right Side1
 JS5brown/ brown-beige
 JS2brown/ grey-beige-white
(1A) 477 867 011 Ndoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Left Side1
 DF9black F >>94DN4 56824
 KZ7black F 94DN4 56825>>
1A 477 867 012 Ndoor trim panel power windows electrically adjustable leatherette Left Hand Drive \/ Right Side1
 DF9black F >>94DN4 56824
 KZ7black F 94DN4 56825>>
(1A) 477 867 011 Ndoor trim panel leatherette pin stripe velour Left Hand Drive \/ Left Side1
 GM5black/ black-white

Pos__Part_Number__DescriptionRemarkQty.Model
1A 477 867 012 Ndoor trim panel leatherette pin stripe velour Left Hand Drive \/ Right Side1
 GM5black/ black-white
1B 477 867 081cover loudspeaker  2
 01Cblack
 89Sbrown F >>94DN4 59296
1B 477 867 081 Acover loudspeaker  2
 4RBbrown F 94DN4 59297>>
1C 477 035 375bush  8
1D N 014 091 4tapping Schraube B 3,9 X 16  8
-N 100 472 01speed nut  8
-999 507 071 00speed nut  2
(2) 477 867 033 Apackage box Left1
 1NFbeige -6.82
 3BFblack F >>94DN4 56824
 8NFbrown F >>94DN4 56824
 3FFgrey-beige F >>94DN4 56824
 1DBblack
 4RBbrown F 94DN4 56825>>
 1DXgrey-beige F 94DN4 56825>>
2 477 867 034 Apackage box Right1

Pos__Part_Number__DescriptionRemarkQty.Model
 1NFbeige -6.82
 3BFblack F >>94DN4 56824
 8NFbrown F >>94DN4 56824
 3FFgrey-beige F >>94DN4 56824
 1DBblack
 4RBbrown F 94DN4 56825>>
 1DXgrey-beige F 94DN4 56825>>
3 N 013 962 2tapping Schraube B 3,9 X 16  6
4 311 867 167tapping Schraube 4,2  4
5 900 151 028 02washer 4,3  10
6 311 867 169cap  4
 01Cblack
 90Vsaddle tan
(7) 477 867 171armrest Left1
 041black
 89Sbrown
 5FXgrey-beige
7 477 867 172armrest Right1
 041black
 89Sbrown
 5FXgrey-beige
8 900 143 046 02tapping Schraube B 4,8 X 16  6

Pos__Part_Number__DescriptionRemarkQty.Model
9 N 012 222 4spring washer   6
  A 5
10 999 591 722 02speed nut   6
  B 4,8 X 19,8
11 900 910 010 09lock nut   2
  M 6
12 N 011 524 7washer   2
  6
(15) 477 867 177 Dsealing film Left 1
15 477 867 178 Dsealing film Right 1
  door trim panel
(15A) 477 867 179sealing film Left 1
15A 477 867 180sealing film Right 1
  loudspeaker
16 823 867 299clip   27
17 477 867 367piping   4
  door
18 477 867 371corner piece   2
(19) 944 555 021 00side trim panel Left 1
 1DBblack
 4RBbrown
19 944 555 022 00side trim panel Right 1
 1DBblack
 4RBbrown
-111 857 785stopper   2
-111 857 795cover disc   2
20 N 015 438 1speed nut   2
  B 3,5 X 16,5
21 N 014 087 5rais. counters. h. tap. s.   4
  B 3,5 X 16
22 N 011 578 1cone washer   4
  3,7

Pos__Part_Number__DescriptionRemarkQty.Model
23 477 867 503rooflining   1
 05Tblack
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
(23) 477 867 501 Arooflining  -83 1 M 650
 05Tblack
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
(23) A 944 555 051 01rooflining  841 M 650
 4RBbrown
(23) 944 555 519 00rooflining  841 M 650
 05Tblack
 4RBbrown
-477 867 543roof strut   3
24 477 867 511lining roof frame Vorder 1
 1DBblack
 4RBbrown
(24) 477 867 513lining roof frame Left-83 1
 1DBblack
 4RBbrown
(24) 477 867 514lining roof frame Right-83 1
 1DBblack
 4RBbrown

Pos__Part_Number__DescriptionRemarkQty.Model
25A 944 555 115 00roof frame padding Left 1
(25) 944 555 116 00roof frame padding Right-83 1
(25A) 944 555 116 00roof frame padding Right841
26 477 867 531roof frame padding Vorder-83 1 M 650
(26) 944 564 531 01roof frame padding Vorder841 M 650
27 477 867 533roof frame padding Hinter-83 1 M 650
28 477 867 553 Alining windscreen frame Left 1
 1DBblack
 4RBbrown
(28) 477 867 554 Alining windscreen frame Right 1
 1DBblack
 4RBbrown
29 N 013 962 2tapping Schraube B 3,9 X 16   6
30 914 552 233 10filler piece   6
 01Cblack
 90Vsaddle tan
31 477 867 653rosette   2
32 477 867 655lining centre pillar Left 1
 05Tblack
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
(32) 477 867 656lining centre pillar Right 1
 05Tblack

Pos__Part_Number__DescriptionRemarkQty.Model
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
33 477 867 923 Acap   2
 01Cblack
 89Scadbury brown
(34) 477 867 153fastening hook Left 1
34 477 867 154fastening hook armrest Right 1
35 944 555 941 00lining roof frame Hinter841 M 650
 05Tblack
 4RBbrown
