Porsche 944 Vorder Seat Teile

Vorder Seat

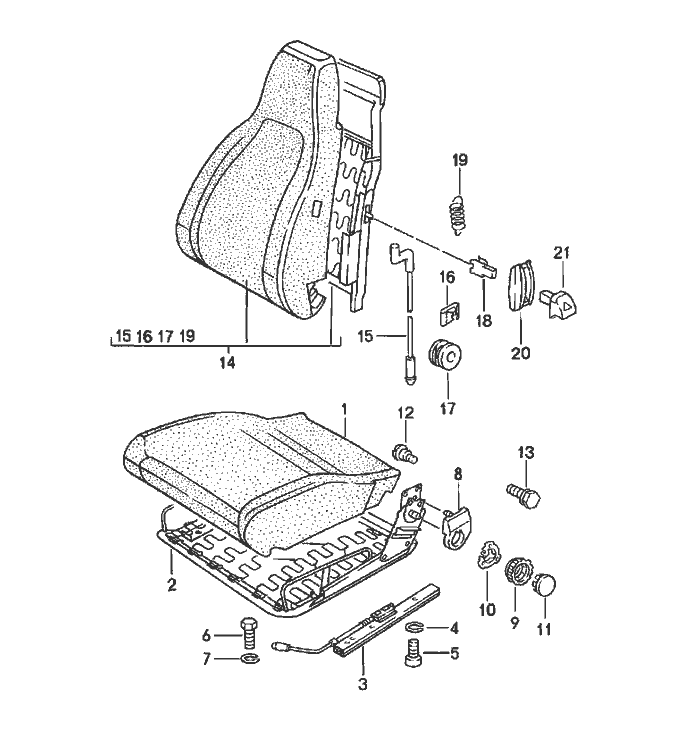

Pos__Part_Number__DescriptionRemarkQty.Model
  front seat
  single parts
1 911 521 385 01foam part Left 1
  seat cushion
(1) 911 521 386 01foam part Right 1
  seat cushion
2 911 521 069 56seat frame Left 1
(2) 911 521 070 56seat frame Right 1
3 A 477 881 211seat rail Left 1
  with locking device
(3) A 477 881 212seat rail Right 1
  with locking device
(3) A 944 521 491 00seat rail   2
(3) 944 521 491 00seat rail   2
  inner
  see tpi
  GR.8 NR.34
4 N 012 006 4lock ring   8
  B 6
5 900 067 009 02pan-head Schraube   8
  M 6 X 15
6 N 010 215 13hexagon-head bolt   8
  M 6 X 15
7 N 012 006 4lock ring   8
  B 6
8 911 521 359 02cover Left 1
(8) 911 521 360 02cover Right 1
9 911 521 381 00shifting wheel   2
  for backrest adjustment
10 911 521 571 00tensioning spring   2
11 911 521 383 00cover   2
12 911 521 371 00Schraube   2
  inner
13 911 521 547 00hexagon-head bolt   4

Pos__Part_Number__DescriptionRemarkQty.Model
14 A 477 881 047backrest Left 1
(14) A 477 881 048backrest Right 1
15 911 521 361 00cable for release   2
16 911 521 369 00terminal for cable   2
17 911 521 343 00guide bush   2
18 311 881 247clamp   2
19 311 881 287 Aspring   2
20 311 881 607 Arosette   2
21 113 881 633 Eknob   2
 01Cblack
-477 898 021repair seat complete with seat rail without foam part without Left 1
  cover for seat and backrest surface
-477 898 022repair seat complete with seat rail without foam part without Right 1
  cover for seat and backrest surface
