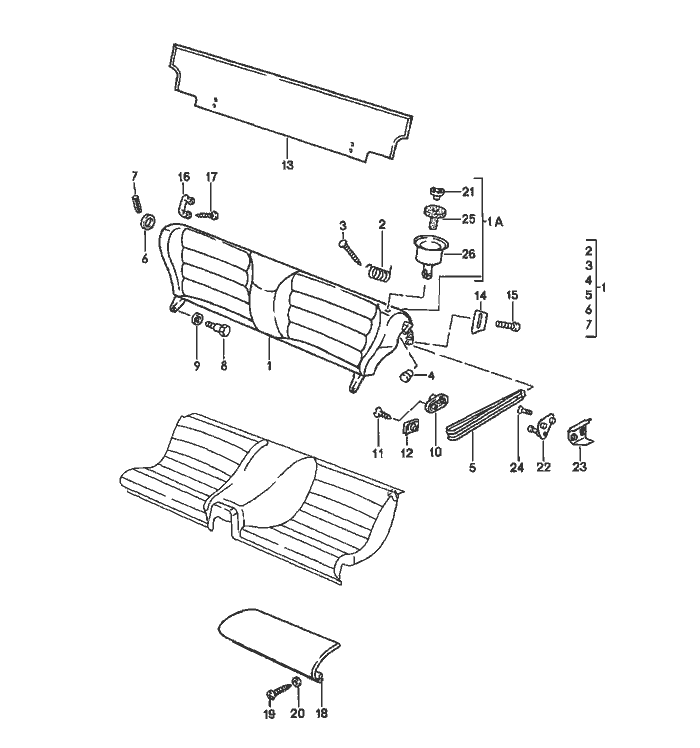

Porsche 944 Back Seat Teile

Back Seat


Pos__Part_Number__DescriptionRemarkQty.Model
  back seat
  single parts
1 477 885 045 Cbackrest  -83 1
  please state the colour
  see group
  8 / 08 / 20
1A 944 522 045 00backrest  841
  please state the colour
  see group
  8 / 08 / 20
2 111 885 657spring  -83 1
3 113 881 899special tack  -83 1
4 477 885 699 Bplug Left-83 1
(4) 477 885 699 Cplug Right-83 1
5 477 885 667traction noose Left-83 1
 05Tblack
 21Sbrown
  F >>94DN4 56824
 4FKgrey-beige  7.82-
 4RBbrown
  F 94DN4 56825>>
6 477 885 555cover  -83 1
7 900 197 010 00roll pin  -83 1
  3 X 22
8 477 885 767hexagon-head bolt   2
9 900 025 007 02washer   2
  A 8,4
10 111 867 329 Alocking lug Left-83 1
(10) 111 867 330 Alocking lug Right-83 1
11 N 014 002 1counters. head tapp. Schraube  -83 4
  B 6,3 X 22
12 999 591 327 02speed nut  -83 4
  B 6,3

Pos__Part_Number__DescriptionRemarkQty.Model
13 477 885 831 Acover  -83 1
 3BFblack
 1NFbeige  82
 8NFbrown
 4BFgrey
 3FFgrey-beige  83
13 944 522 831 00carpet for back seat backrest  841
 3BFblack
 4BFgrey
 8NFbrown
 3FFgrey-beige
14 477 885 865stop Left-83 1
(14) 477 885 866stop Right-83 1
15 N 014 155 1oval-head Schraube M 5 X 22  -83 4
16 477 885 761retaining bar   2
17 N 014 096 3tapping Schraube B 4,2 X 22   4
21 944 522 317 00push button  842
 01Csatin black
22 944 522 029 00locking lug Left841
(22) 944 522 030 00locking lug Right841
23 944 522 031 00support  842
24 999 219 012 07countersunk-head Schraube M 6 X 22  844
25 944 522 319 00guide piece   2
26 944 522 315 00rosette   2

Pos__Part_Number__DescriptionRemarkQty.Model
 01Csatin black
