Porsche 944 Dashboard Teile

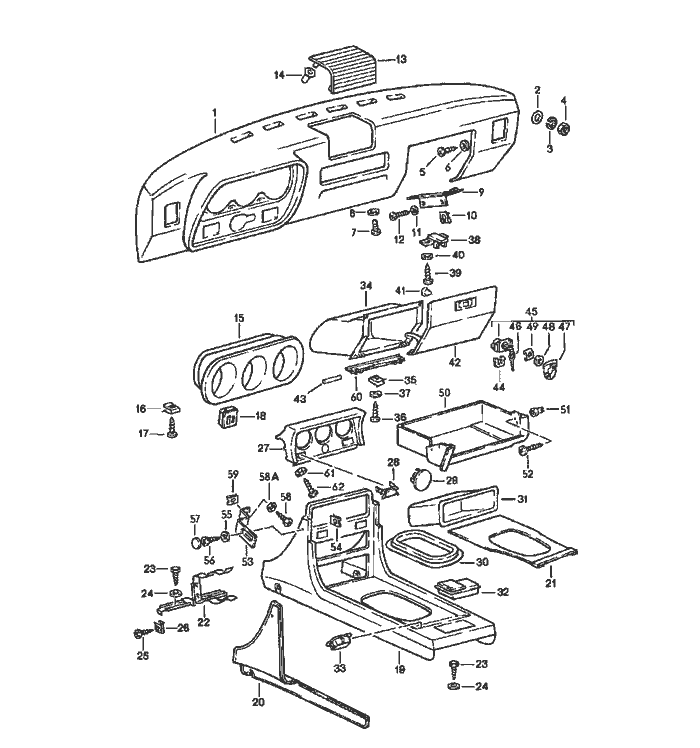

Pos	__Part_Number__	Description	Remark	Qty.	Model
		dashboard
1	477 857 881 C	dashboard	Left Hand Drive	1
	1DB	black	-6.82
	4RB	brown
1	477 857 881 A	dashboard	Left Hand Drive	1
	1DB	black	7.82-
2	N 011 612 3	washer		2
		R 7
3	N 012 036 1	lock ring		2
		6
4	900 076 010 02	hexagon nut		2
		M 6
5	900 143 007 02	tapping Schraube		4
		B 4,2 X 13
6	900 151 028 02	washer		4
		B 4,3
7	N 014 140 5	oval-head Schraube		1
		M 6 X 15
8	N 011 524 7	washer		1
		A 6,4
9	477 857 195 B	support	Left Hand Drive	1
10	N 015 429 2	speed nut	Left Hand Drive	2
11	900 025 002 02	washer	Left Hand Drive	2
		A 4,3
12	N 013 964 4	tapping Schraube	Left Hand Drive	2
		B 4,2 X 16
13	477 857 187	loudspeaker grille		1
	01C	black
	89S	brown
14	477 857 821	grommet		4
		loudspeaker grille
15	477 857 283 A	dashboard trim		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
	FP7	black
16	999 591 722 02	speed nut B 4,8 X 19,8			2
17	N 014 098 6	tapping Schraube B 4,8 X 16			2
18	477 857 137 A	cover light switch		83	1
	1DB	black
	4RB	brown
18	477 857 137	cover light switch		-82	1
	01C	black
	89S	brown
(18)	477 857 138 A	cover switch rear window heating		83	1
	1DB	black
	4RB	brown
(18)	477 857 138	cover switch rear window heating		-82	1
	01C	black
	89S	brown
19	477 857 931 A	centre console			1
	1DB	black
	4RB	brown
20	477 863 741	lining	Left		1
	3BF	black
	8NF	brown
	1NF	beige
	4BF	grey

Pos	__Part_Number__	Description	Remark	Qty.	Model
	3FF	grey-beige
(20)	477 863 742	lining	Right		1
	3BF	black
	8NF	brown
	1NF	beige
	4BF	grey
	3FF	grey-beige
21	477 863 749	carpet			1
	1DR	black
	8NF	brown
	1NF	beige
	4BF	grey
	3FF	grey-beige
22	477 857 067 A	support centre console			1
23	N 013 891 1	tapping Schraube B 6,3 X 19			4
24	N 011 533 2	washer A 7			4
25	N 013 957 5	tapping Schraube BZ 3,5 X 9,5			2
26	N 015 438 1	speed nut			2
27	477 857 977 C	instrument insert			1
	1DB	black
	4RB	brown
28	944 552 387 00	cover			1
30	477 857 975	support frame			1
	01C	black
	89S	brown

Pos	__Part_Number__	Description	Remark	Qty.	Model
31	481 857 233 A	package box			1
32	944 552 305 00	ashtray			1
	1DB	black
	4RB	brown
33	911 552 469 00	cover			X
34	477 857 095 B	glove compartment			1
		F >>94DN4 63171
(34)	477 857 095 C	glove compartment			1
		F 94DN4 63172>>
35	999 507 252 02	nut			2
		B 3,9 X 16,5
36	N 013 962 3	tapping Schraube			5
		B 3,9 X 16
37	N 011 692 3	washer			5
38	477 857 143	lock bearing			1
	01C	black
39	900 143 007 02	tapping Schraube			2
		B 4,2 X 13
40	900 025 002 02	washer			2
		A 4,3
41	N 020 022 3	stopper			1
		A 8 X 1
42	477 857 123	glove compartment cover	Left Hand Drive		1
	1DB	black
42	477 857 123 A	glove compartment cover	Left Hand Drive		1
	4RB	brown
43	N 013 209 2	straight pin			2
		4 H 8 X 36
44	133 857 119	clamp			1
	01C	black

Pos	__Part_Number__	Description	Remark	Qty.	Model
45	477 857 133 C	lock			1
		with keys
	01C	black
	90V	brown
46	477 857 135 A	blank key			2
46	477 857 136 A	key			1
		with stipulated lock number
		state lock number
47	944 559 097 00	crest			1
48	N 011 536 1	washer			1
		A 2,2
49	N 012 852 1	clamping washer			1
50	477 857 836	shelf			1
	01C	black
	89S	brown
51	477 857 173	clip	Left Hand Drive		1
52	N 043 940 3	tapping Schraube	Left Hand Drive		1
		B 4,8 X 25
53	477 857 941	bracket			2
54	N 015 422 2	speed nut			2
55	900 151 028 02	washer			2
		B 4,3
56	311 867 167	tapping Schraube			2
57	311 867 169	cap			2
	01C	black
	90V	brown
58	900 143 007 02	tapping Schraube			2
		B 4,2 X 13
58A	900 904 013 02	washer			2
		A 4,55
59	999 591 850 02	speed nut			2

Pos	__Part_Number__	Description	Remark	Qty.	Model
60	944 552 195 00	hinge F 94DN4 63172>>		1
-	N 013 981 3	tapping Schraube B 3,9 X 13 F 94DN4 63172>>		1
61	N 011 535 5	washer A 3,2		2
62	N 013 953 9	tapping Schraube B 2,9 X 9,5		2
