Porsche 944 Interior Mirror Teile

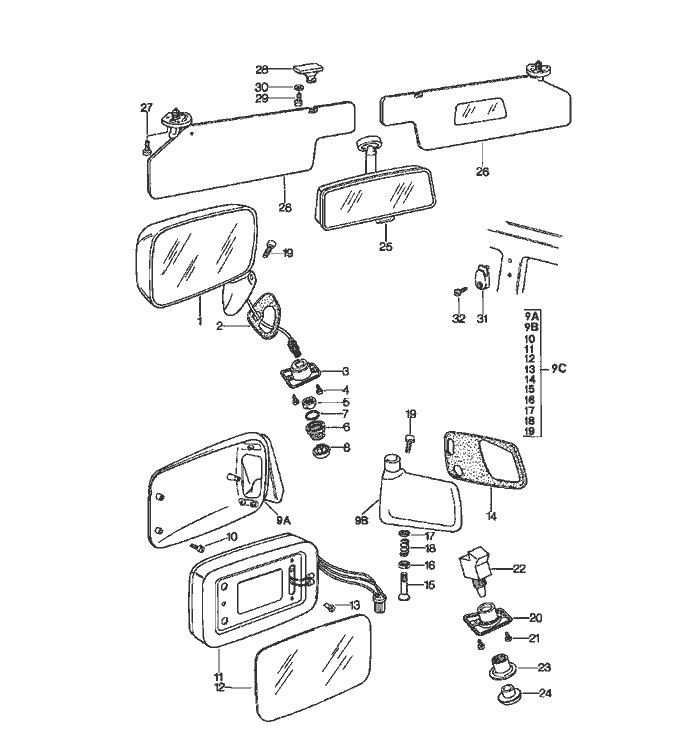

Interior Mirror


Pos__Part_Number__DescriptionRemarkQty.Model
  interior mirror
  door mirror
  sun visor
1 477 857 521 Edoor mirror Left Hand Drive \/ Left Side1
  plane
(1) 477 857 522 Cdoor mirror Left Hand Drive \/ Right Side1
  plane
-477 857 611 Bmirror glass  1
  plane
2 477 857 579desk pad Left1
(2) 478 857 579desk pad Right1
3 477 867 523mounting piece  1
 01Cblack
4 N 014 090 5tapping Schraube  2
  3,9 X 13
5 477 857 615threaded bush  1
 01Cblack
6 477 857 619bellows  1
7 477 857 641retainer  1
8 477 857 617knob  1
 01Cblack
  door mirror
  electrically adjustable
9A 911 731 043 03mirror housing Left1
(9A) 911 731 044 03mirror housing Right1
9B 928 731 141 06mirror base Left Hand Drive \/ Left Side1
(9B) 928 731 143 08mirror base Left Hand Drive \/ Right Side1
9C 477 898 027door mirror Left1
  plane
(9C) 477 898 028door mirror Right1
  plane

Pos__Part_Number__DescriptionRemarkQty.Model
10 999 143 003 02hexagon-head bolt  3
  M 5 X 10
11 911 731 027 06covering frame Left1
(11) 911 731 028 06covering frame Right1
12 911 731 035 08mirror glass  1
  plane
13 999 703 128 40grommet  3
14 944 731 505 00desk pad Left Hand Drive \/ Left Side1
(14) 944 731 508 00desk pad Left Hand Drive \/ Right Side1
15 911 731 257 02guide tube  1
16 911 731 345 02centring washer  1
  lower
17 911 731 347 00centring washer  1
  upper
18 911 731 029 01compression spring  1
19 999 067 026 07pan-head Schraube  1
  M 5 X 40 X 25
20 477 867 181mounting piece  1
21 N 014 090 5tapping Schraube  2
  3,9 X 13
22 911 613 115 00switch  1
23 928 555 463 02threaded bush  1
24 928 613 462 00knob  1
  electrical components
  door mirror  1
-477 971 111wiring harness  1
  door mirror
  driver's door
-477 971 115 Awiring harness Left Hand Drive1
  door mirror
  dashboard

Pos__Part_Number__DescriptionRemarkQty.Model
-477 971 910bellows  1
  see group 8/04/00
  electrical components door mirror  2
-477 971 115wiring harness door mirror dashboard Left Hand Drive1
-477 971 113wiring harness door mirror passenger's door  1
-477 955 703rocker switch passenger's side Left Hand Drive1
-803 971 979plug socket 7-pole  X
-477 971 910bellows  2
  see group 8/04/00
-* 477 898 025installation set electric adjustable and heatable door mirror plane Left Hand Drive \/ Left Side1
-* 477 898 026installation set electric adjustable and heatable door mirror plane Left Hand Drive \/ Right Side1
25 477 857 511interior mirror  1
26 A 477 857 551sun visor without mirror /L -84 1
 05Tblack
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
(26) 478 857 551 Asun visor with mirror /L -84 1

Pos__Part_Number__DescriptionRemarkQty.Model
 05Tblack
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
(26) 477 857 552 Csun visor with mirror Right-84 1
 05Tblack
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
(26) 477 857 552 Asun visor without mirror Right-84 1
 05Tblack
 21Sbrown F >>94DN4 56824
 4RBbrown F 94DN4 56825>>
(26) 944 731 031 01sun visor Left851
 05Tblack
 4RBbrown
 3MXburgundy
(26) 944 731 032 01sun visor Right851
 05Tblack
 4RBbrown
 3MXburgundy
27 N 014 096 3tapping Schraube B 4,2 X 22   6
28 803 857 561 Asupport  -84 2
 01Csatin black

Pos__Part_Number__DescriptionRemarkQty.Model
(28) 944 731 439 00support sun visor 852
29 900 143 047 07tapping Schraube B 4,2 X 19  4
30 900 151 028 02washer B 4,3  4
31 171 857 635coat hook  2
 01Cblack
32 171 857 650Schraube 4,8 X 16  2
