Porsche 944 Vacuum Control Teile

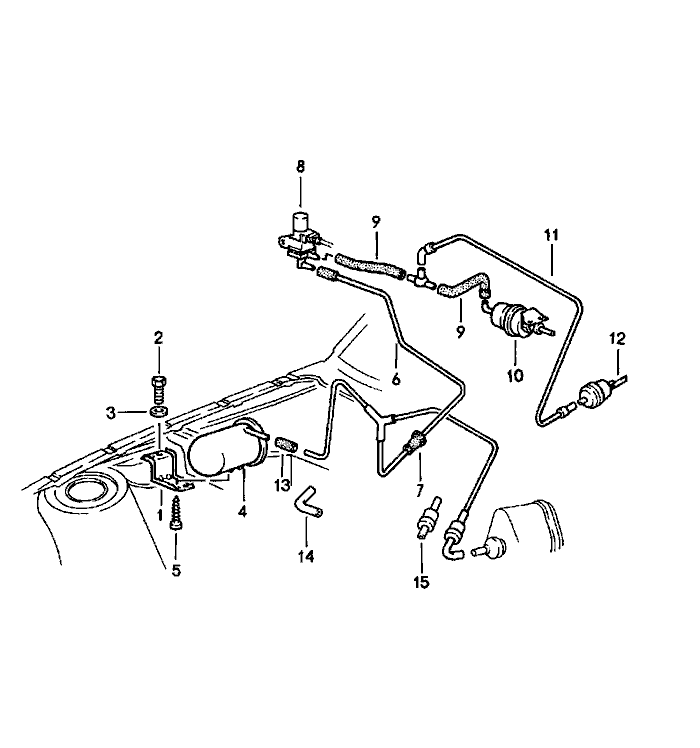

Vacuum Control


Pos__Part_Number__DescriptionRemarkQty.Model
  vacuum control    M 573
1 944 573 465 00support Left Hand Drive-83 1
(1) 944 573 465 01support  841
2 N 010 215 13hexagon-head bolt  -83 2
  M 6 X 15
3 N 011 524 7washer  -83 2
  A 6,4
-900 076 010 02hexagon nut  842
  M 6
-N 012 006 4lock ring  842
  B 6
4 945 573 808 00vacuum reservoir   1
5 N 090 186 1tapping Schraube   1
  B 4,8 X 13
6 944 573 099 00vacuum line Left Hand Drive 1
  F >>94DN4 50807
(6) 944 573 099 02vacuum line Left Hand Drive 1
  F 94DN4 50808>>
7 477 819 849grommet   1
8 944 573 165 00solenoid valve Left Hand Drive 1
9 477 820 557vacuum line Left Hand Drive 1
10 477 820 545vacuum unit Left Hand Drive 1
11 944 573 101 00vacuum line Left Hand Drive 1
12 944 573 053 00vacuum unit   1
13 928 574 747 03connecting piece  -83 1
14 928 574 717 02moulded hose  841
15 928 537 361 02valve   1
