Porsche 944 Motor Elektriks 2 Teile

Pos	__Part_Number__	Description	Remark	Model

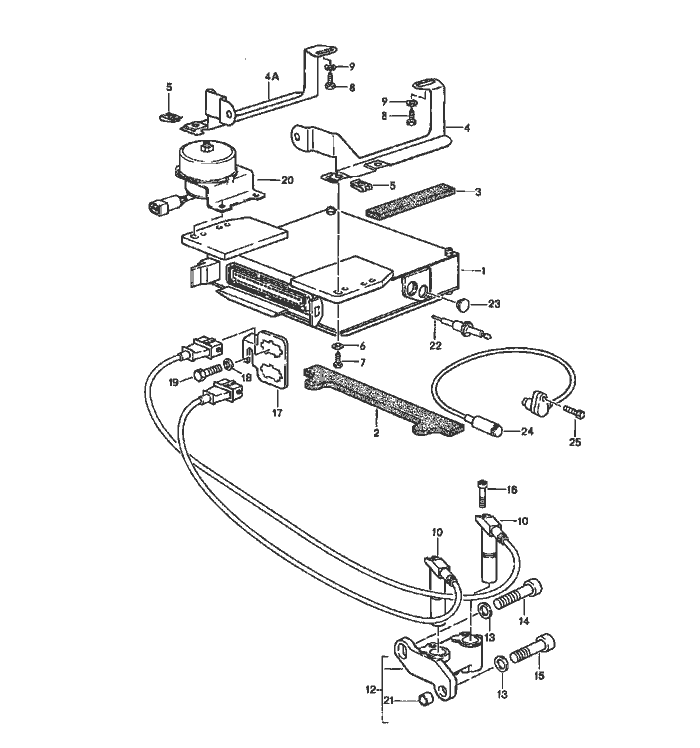

		engine electrics 2
1	944 618 111 01	control unit		1
		DME
2	944 618 119 00	plastic foam strip		1
3	944 618 120 00	plastic foam strip		1
4	944 618 141 00	bracket	Left	1
4A	944 618 142 00	bracket	Right	1
5	N 901 561 01	speed nut		4
6	900 025 003 02	washer		4
		A 5,3
7	900 187 004 02	hexagon-head tapping Schraube		4
		B 4,8 X 19
8	N 013 884 5	tapping Schraube	Left Hand Drive	2
		B 4,8 X 13
9	N 012 225 2	spring washer	Left Hand Drive	2
		B 5
10	944 606 115 00	pulse sender		2
12	944 101 031 03	support		1
13	900 025 007 02	washer		2
		A 8,4
14	N 014 726 3	pan-head Schraube		1
		M 8 X 30
15	N 014 725 2	pan-head Schraube		1
		M 8 X 25
16	999 217 026 02	locking Schraube
		M 6 X 16
17	944 612 151 00	support		1
18	N 011 524 7	washer		1
		A 6,4
19	N 010 215 13	hexagon-head bolt		1
		M 6 X 15
20	944 606 051 00	altitude capsule		1

Pos	__Part_Number__	Description	Remark	Qty.
21	900 197 047 08	tensioning sleeve		1
24	911 606 108 00	timing mark sender	84	1
25	900 067 089 02	pan-head Schraube		1
		M 6X25
