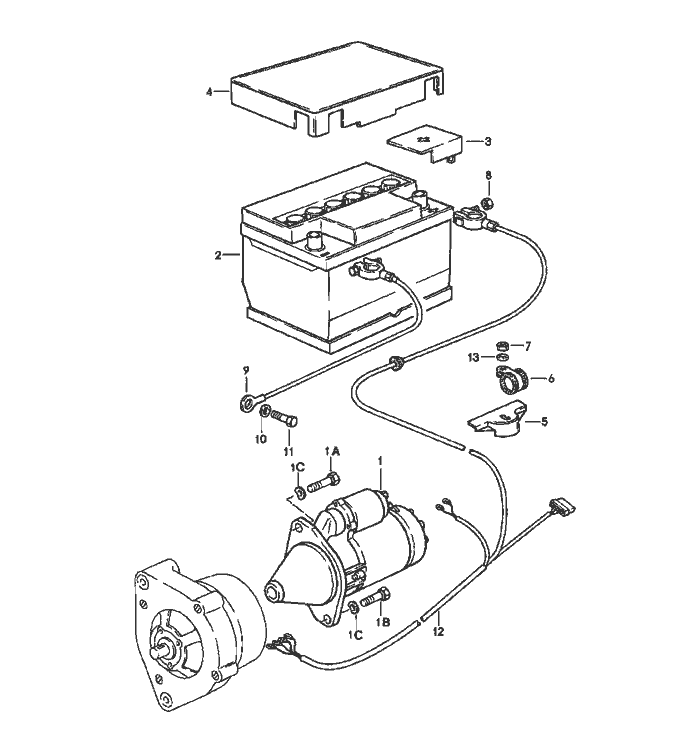

Porsche 944 Starter Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		starter
		battery
		wiring harnesses
1	951 604 101 00	starter			1
		1,1 KW
1A	N 010 491 1	hexagon-head bolt			1
		M 12 X 50
1B	N 040 253 1	hexagon-head bolt			1
		M 12 X 35
1C	900 028 014 02	spring washer			2
		B 12
2	944 611 101 00	battery	Left Hand Drive		1
		50 AH
2	477 915 107 A	battery			1
		63 AH
4	281 915 411 F	battery cover			1
		for			1
		battery
		50 AH
(4)	477 915 411 A	battery cover			1
		for
		battery
		63 AH
5	914 611 233 10	tension terminal			1
6	N 020 607 1	clamp			1
		B 20 X 20 GI
7	477 915 489	hexagon nut			1
		M 8
8	900 076 010 02	hexagon nut			2
		M 6
9	477 971 221	ground strap			1
10	900 027 015 02	lock ring			1
		B 8
11	N 010 239 11	hexagon-head bolt			1
		M 8 X 18

Pos	__Part_Number__	Description	Remark	Qty.	Model
12	944 612 015 01	wiring harness starter generator	Left Hand Drive		1
