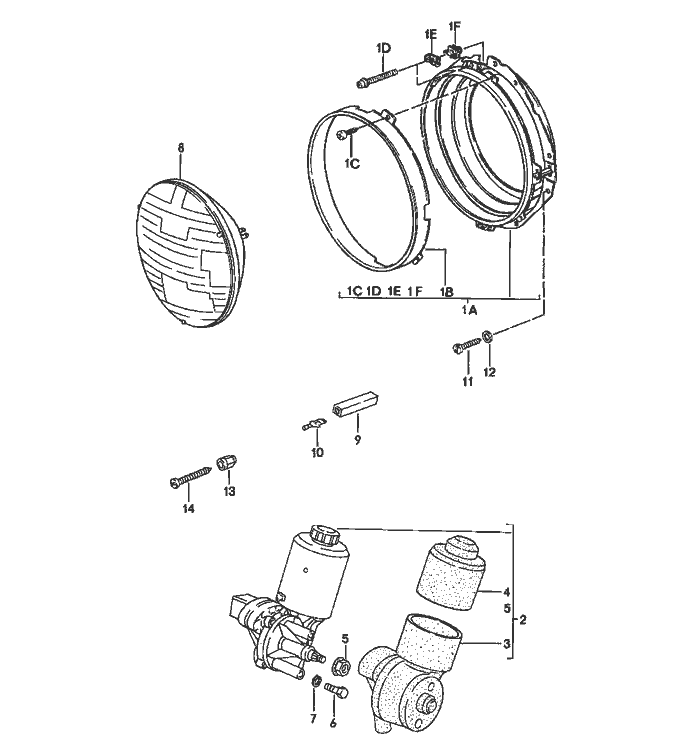

Porsche 944 Kopflamp Teile
Pos
__Part_Number__
Description
Remark
Qty.
Model
headlamp
electric motor
pop-up headlight
1A
477 941 050 A
retaining frame
2
1B
111 941 049 A
retaining ring
2
1C
N 013 961 2
tapping Schraube
6
1D
477 941 143
adjusting Schraube
4
1E
477 941 145
retainer spring
4
1F
477 941 147
threaded piece
4
2
477 941 379 B
electric motor
1
pop-up headlight
3
477 941 386
protection cap
1
lower
4
477 941 387
protection cap
1
-
477 941 383
diode
X
electric motor
pop-up headlight
5
999 084 045 02
pawl nut
1
M 6
6
999 072 005 09
hexagon-head bolt
3
M 6 X 12
7
N 012 006 4
lock ring
3
B 6
8
999 631 127 90
headlamp unit
2
(SEALED BEAM)
9
111 971 977
plug with guide
6
10
111 971 986
flat plug
6
6,3 X 0,8
(11)
900 143 041 00
tapping Schraube
8
B 3,9 X 19
(12)
900 025 002 02
washer
8
A 4,3
13
477 857 173
clip
2
Pos
__Part_Number__
Description
Remark
Qty.
Model
14
N 043 979 2
tapping Schraube BZ 4,2 X 45
2
