Porsche 944 Kurbelgehäuse Teile

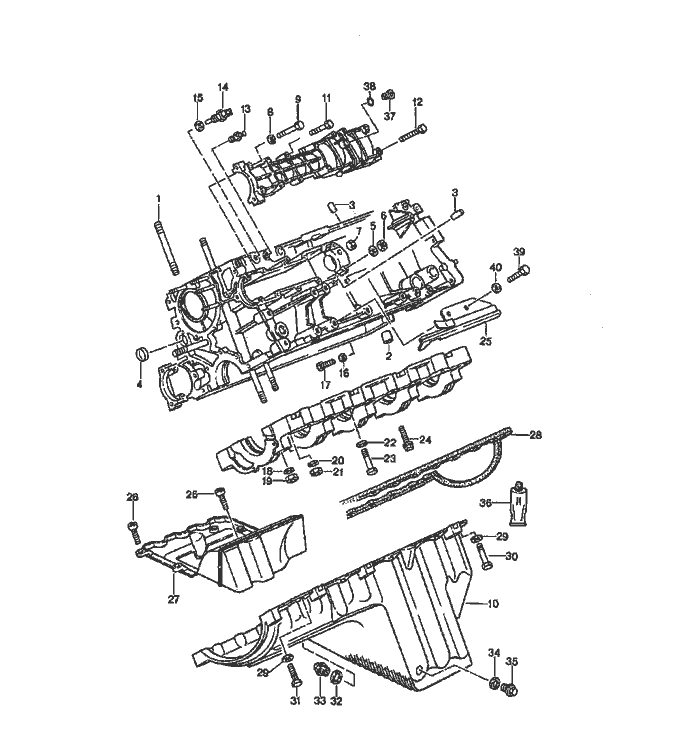

Kurbelgehäuse


Pos__Part_Number__DescriptionRemarkQty.Model
  crankcase -86
  mounting parts
1 944 101 197 00stud  10
2 928 101 195 03fitting bushing  1
3 999 012 034 00straight pin  4
  8 X 12
4 N 011 919 1lid  2
5 999 025 141 02washer  4
  8,1 X 17 X 3
6 999 076 034 02hexagon nut  4
  M 8
7 951 107 241 02sealing ring  1
8 900 025 007 02washer  8
9 900 074 139 02hexagon-head bolt  X
  M 8 X 55
9 N 010 361 4hexagon-head bolt  4 M 657
  M 8 X 65
10 944 101 201 11oil pan  1
  see tpi
  GR.1 NR.21
11 900 075 349 02hexagon-head bolt  2
  M 6 X 42
12 900 075 344 02hexagon-head bolt  16
  M 6 X 50
13 928 606 201 01remote temperature sensor  1
14 944 606 125 00temperature sensor  1
15 900 123 101 30sealing ring  1
  12 X 18
16 900 123 105 30sealing ring  1
  8 X 14
17 900 075 087 02hexagon-head bolt  1
  M 8 X 16
18 944 104 229 00washer  10

Pos__Part_Number__DescriptionRemarkQty.Model
19 N 011 020 8hexagon nut  10
  M 12 X 1,5
20 928 101 303 00washer  7
21 N 011 010 13hexagon nut  7
  M 10
22 900 025 007 02washer  X
23 900 074 040 02hexagon-head bolt  X
  M 8 X 50
24 900 075 345 02hexagon-head bolt  X
  M 6 X 35
25 944 101 033 00heat shield  1
26 900 119 001 02pan-head Schraube  7
  M 5 X 12
27 944 107 389 01insert for oil sump  1
28 944 101 205 02oil sump gasket  1
29 N 011 524 7washer  22
30 900 075 344 02hexagon-head bolt  4
  M 6 X 50
31 900 075 341 02combination Schraube  18
  M 6 X 25
32 900 123 118 30sealing ring  1
33 944 107 197 01Schraube plug  1
34 900 123 049 30sealing ring  1
35 N 016 164 1Schraube plug  1
36 000 043 019 01sealing compound  X
  1 tube
  SILASTIC 730 RTV
37 900 219 002 02Schraube plug  1
38 900 123 007 30sealing ring  1
  A 14 X 18
39 900 075 085 02hexagon-head bolt  2
40 900 025 007 02washer  2
