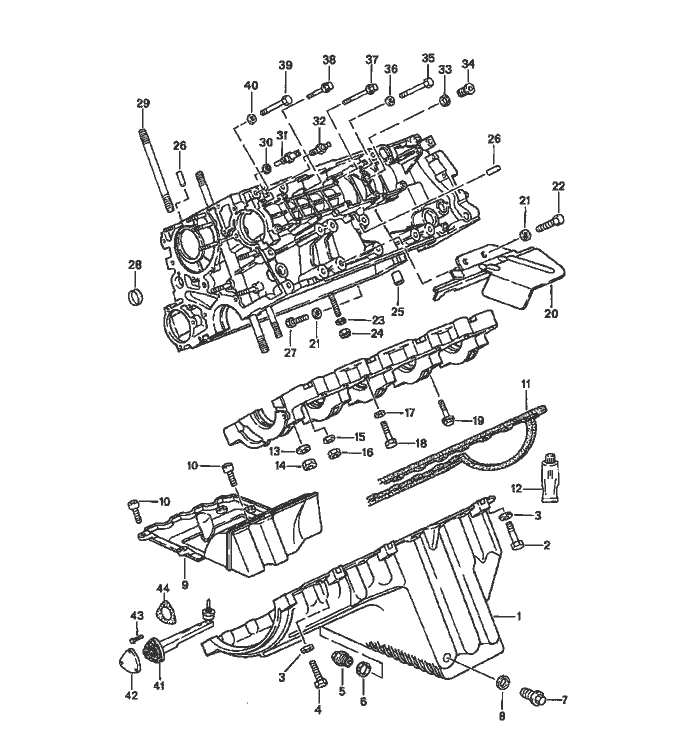

Porsche 944 Kurbelgehäuse Teile

Kurbelgehäuse


Pos__Part_Number__DescriptionRemarkQty.Model
  crankcase 87
  mounting parts
1 944 101 201 11oil pan see tpi GR. 1 NR. 21  1 M44.05-08 M44.40/51
  M >> 43H 05637 M >> 43H 61343   M44.07 M44.08
  M >> 45H 01414 M >> 42H 03027   M44.50/51 M44.40
1 944 101 201 14oil pan M 43H 05638 >>  1 M44.05-10 M44.40/51 M44.52 M44.07
  M 43H 61344 >>   M44.08
  M 45H 01415 >>   M44.50/51 M44.52
  M 42H 03028 >>   M44.40
2 N 040 259 1hexagon-head bolt M 6 X 50  4
3 N 011 524 7washer  22
4 900 075 017 02hexagon-head bolt M 6 X 25  18
5 944 107 197 01Schraube plug  1
6 900 123 118 30sealing ring  1
7 N 016 164 1Schraube plug  1
8 900 123 049 30sealing ring  1
9 944 107 389 01insert for oil sump M >> 43H 05637  1 M44.05-08 M44.40/51 M44.07
  M >> 43H 61343 M >> 45H 01414 M >> 42H 03027   M44.08 M44.50/51 M44.40
9 944 107 389 02insert for oil sump M 43H 05638 >>  1 M44.05-10 M44.40/51 M44.07
  M 43H 61344 >> M 45H 01415 >> M 42H 03028 >>   M44.08 M44.50/51 M44.40
10 900 119 001 02pan-head Schraube M 5 X 12  7

Pos__Part_Number__DescriptionRemarkQty.Model
11 944 101 205 02oil sump gasket  1
12 000 043 019 01sealing compound  X
  1 tube
  SILASTIC 730 RTV
13 944 104 229 00washer  10
14 N 011 020 8hexagon nut  10
  M 12 X 1,5
15 928 101 303 00washer  7
16 N 011 010 13hexagon nut  7
  M 10
17 900 025 007 02washer  7
18 900 074 040 02hexagon-head bolt  7
  M 8 X 50
19 900 075 345 02hexagon-head bolt  5
  M 6 X 35
20 944 101 033 00heat shield  1
21 900 025 007 02washer  2
22 900 075 085 02hexagon-head bolt  2
23 N 011 524 7washer  1
24 900 076 010 02hexagon nut  1
25 928 101 195 03fitting bushing  1
26 999 012 034 00straight pin  4
  8 X 12
27 900 075 087 02hexagon-head bolt  1
-900 123 105 30sealing ring  1
28 N 011 919 1lid  2
29 944 101 197 00stud  10
30 900 123 101 30sealing ring  1
31 944 606 125 00temperature sensor  1
32 928 606 201 01remote temperature sensor  1

Pos__Part_Number__DescriptionRemarkQty.Model
33 900 123 007 30sealing ring  1
34 900 219 002 02Schraube plug  1
35 900 074 326 08hexagon-head bolt M 8 X 58  4
36 999 025 141 02washer  4
37 900 075 344 02hexagon-head bolt M 6 X 50 Z1  16
38 900 075 349 02hexagon-head bolt M 6 X 42 Z1  4
39 900 074 139 02hexagon-head bolt M 8 X 55 hexagon-head bolt M 8 X 65  X 4 M 657
40 900 025 007 02washer  8
41 944 613 150 00sender for oil level  1
42 944 101 329 01lid  1
43 999 074 035 02hexagon-head bolt M 5 X 20  3
44 944 101 233 02gasket without asbestos  1
-999 062 044 02stud for chain adjuster  3
