Porsche 944 Kurbelwelle Teile

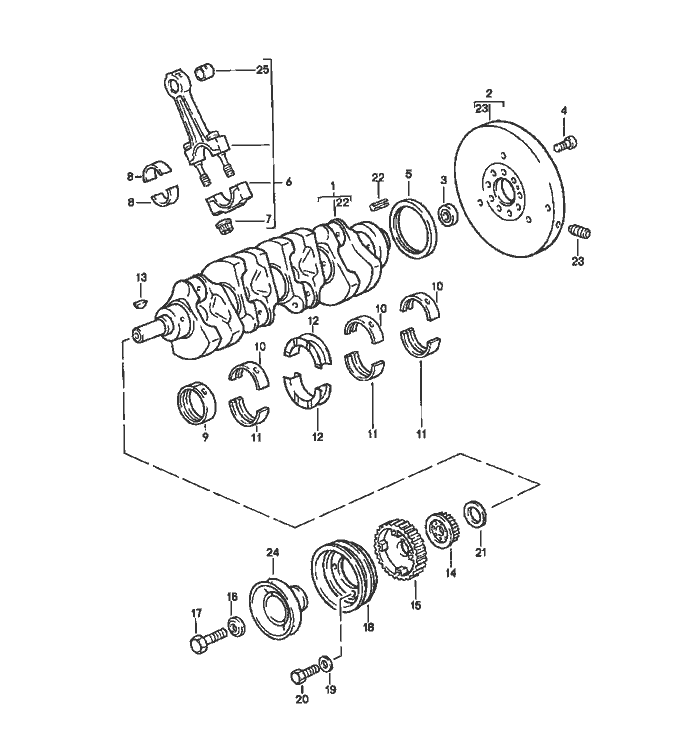

Kurbelwelle


Pos__Part_Number__DescriptionRemarkQty.Model
  crankshaft
  connecting rod
1 944 102 015 13crankshaft  1
2 944 102 051 01flywheel  1 M44.05/07
     M44.09
2 944 102 053 02flywheel AUT. 1 M44.06/08
     M44.10
2 951 102 051 01flywheel  1 M44.50/51
     M44.52
2 944 102 051 02flywheel  1 M44.40
3 931 102 111 00deep-groove ball bearing  1
4 930 102 206 00pan-head Schraube  9
5 * 999 113 264 40radial sealing ring  1
6 944 103 008 02connecting rod  4 M44.05-10
     M44.40
6 944 103 001 00connecting rod  4 M44.50/51
     M44.52
7 928 103 172 02connecting rod nut  8
8 928 103 143 02conrod bearing shell  8
8 928 103 143 52conrod bearing shell  X
  oversize 0.25 mm
8 928 103 143 57conrod bearing shell  X
  oversize 0.50 mm
9 * 928 101 117 08main bearing bush i  1
9 * 928 101 117 58main bearing bush i  X
  undersize 0.25 mm
9 * 928 101 117 68main bearing bush i  X
  undersize 0.50 mm
10 * 928 101 115 02main bearing shell  3
 002
10 * 928 101 115 50main bearing shell  X
  undersize 0.25 mm

Pos__Part_Number__DescriptionRemarkQty.Model
10 * 928 101 115 60main bearing shell  X
  undersize 0.50 mm
11 * 928 101 115 03main bearing shell  3
 002
11 * 928 101 115 51main bearing shell  X
  undersize 0.25 mm
11 * 928 101 115 61main bearing shell  X
  undersize 0.50 mm
12 * 944 101 139 00thrust bearing  2
 002
12 * 928 101 133 53thrust bearing  X
  undersize 0.25 mm
12 * 928 101 133 63thrust bearing  X
  undersize 0.50 mm
13 900 117 036 00feather key  1
  5 X 5 X 22
14 944 105 125 02gear wheel  1 M44.05-10
     M44.51/52
  driving mechanism
  camshaft
14 944 105 125 06gear wheel  1 M44.40
  driving mechanism
  camshaft
15 944 102 209 08gear wheel  1 M44.05-10
     M44.51/52
     M44.51/52
  driving mechanism
  balance shaft
15 944 102 209 11gear wheel  1 M44.40
  driving mechanism
  balance shaft
16 944 102 210 02washer  1
17 900 082 085 02hexagon-head bolt  1
  M 16 X 1,5 X 60
18 944 102 116 12pulley  1 M44.05-10
     M44.51/52

Pos__Part_Number__DescriptionRemarkQty.Model
18 944 102 123 02vibration damper  1 M44.40
19 N 011 524 7washer M >> 43H 11260 M >> 43H 62893 M >> 42H 05461 M >> 45H 83873  4 M44.05-10 M44.51/52 M44.07 M44.08 M44.40 M44.51
19 900 031 011 02washer M 43H 11261 >> M 43H 62894 >> M 42H 05462 >> M 45H 83874 >>  4 M44.40 M44.07 M44.08 M44.40 M44.51
20 900 075 057 02hexagon-head bolt M >> 43H 11260 M >> 43H 62893 M >> 42H 05461 M >> 45H 83873  4 M44.05-10 M44.51/52 M44.07 M44.08 M44.40 M44.51
20 900 067 279 08pan-head Schraube M 43H 11261 >> M 43H 62894 >> M 42H 05462 >> M 45H 83874 >>  4 M44.40 M44.07 M44.08 M44.40 M44.51
21 900 234 127 00support washer  1
22 900 095 031 00tensioning sleeve 6 X 16  1
23 477 105 276threaded pin  3
24 944 102 214 03pulley  1 M 657
25 944 103 133 02piston pin bush  1
