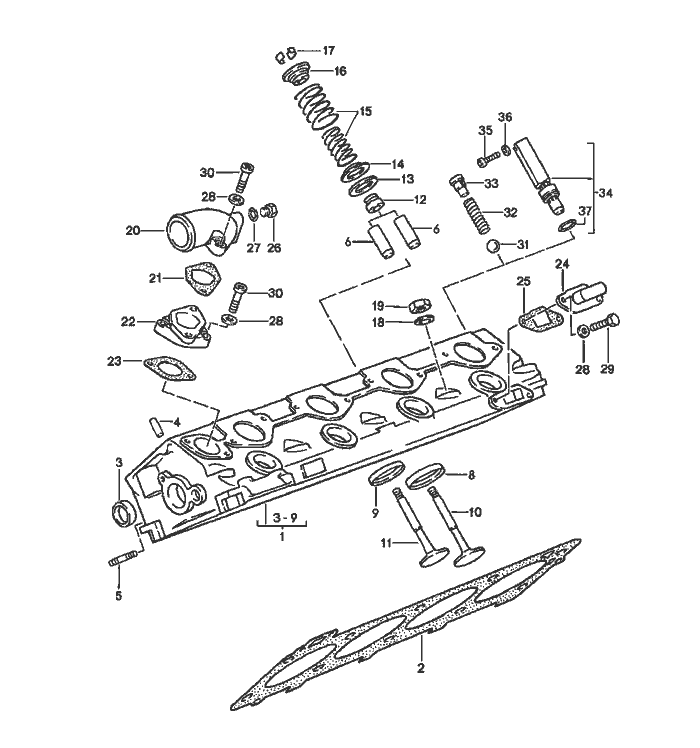

Porsche 944 Zylinder Kopf Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		cylinder head			M44.50/51
					M44.52
		valves
1	951 104 038 01	cylinder head		1	M44.50/51
1	951 104 038 04	cylinder head		1	M44.52
2	951 104 374 02	cylinder head gasket		1
(2)	951 104 374 50	cylinder head gasket		1
		for
		recond. cylinder heads
3	900 036 005 02	lid		2
4	900 302 019 00	straight pin		2
5	999 062 044 02	stud		8
		M 8 X 30
6	944 104 328 51	valve guide		8
		1st oversize
8	951 104 331 50	valve seat ring		4
		intake
		oversize
9	951 104 333 51	valve seat ring		4
		exhaust
		oversize
10	951 105 415 00	intake valve		4
11	951 105 416 07	exhaust valve		4
-	000 043 204 48	sleeve		X
		for
		valve stem seal
12	951 104 195 01	valve stem seal		8	M44.50/51
12	951 104 195 01	valve stem seal		8	M44.52
13	928 105 468 03	washer		X
		0,5 MM
13	928 105 470 03	washer		X
		1,0 MM
14	928 105 469 06	washer		8
15	951 105 905 10	set of valve springs		8

Pos	__Part_Number__	Description	Remark	Qty.	Model
16	928 105 449 04	concave washer		8
17	901 105 417 00	collet		16
18	944 104 229 00	washer		10
19	999 076 043 02	hexagon nut		10
		M 12 X 1,5
20	951 104 315 00	cooling water socket		1
21	951 104 311 03	gasket		1
		without asbestos
22	951 104 313 00	intermediate piece		1
23	944 104 311 06	gasket		1
		without asbestos
24	944 104 317 04	adapter		1
25	928 106 197 04	gasket		1
		without asbestos		1
26	931 106 156 00	Schraube plug		1
27	N 013 830 7	sealing ring		1
		A 8 X 12
28	N 011 525 13	washer		6
		A 8,4
29	N 044 704 1	pan-head Schraube		4
		M 8 X 28
30	N 044 704 1	pan-head Schraube		4
		M 8 X 28
30	N 014 777 2	pan-head Schraube		4
		M 8 X 30
31	N 025 669 2	ball		1
32	928 104 129 00	compression spring		1
33	951 104 229 00	guide piece		1
		for
		cylinder head
		951.104.038.02
34	944 107 239 01	pressure relief valve		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
35	N 014 740 2	pan-head Schraube		1
36	999 123 032 30	sealing ring		1
37	999 707 078 40	o-ring		1
